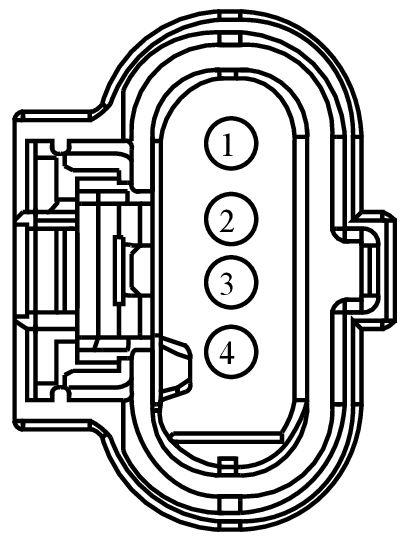

Connector End View (C3443) - PARTICULATE MATTER BANK 1, SENSOR 1 (PM11) MODULE
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C3443 | PARTICULATE MATTER BANK 1, SENSOR 1 (PM11) MODULE | BK | 14406 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| EU5T-14474-FAB | Not Available | |
| EU5T-14474-GAB | KU2Z-14474-CA | 1.20 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | GD477 (BU-RD) | 18 | GROUND - FRAME REAR LEFT #2 | EU5T-14474-GAB|EU5T-14474-FAB | ||||
| 1 | GD477 (BU-RD) | 20 | GROUND - FRAME REAR LEFT #2 | EU5T-14474-GAB|EU5T-14474-FAB | ||||
| 2 | VE349 (BN-YE) | 22 | CTRL MOD. - POWERTRAIN # NOX CAN BUS #2 LOW | EU5T-14474-FAB | ||||
| 3 | VE348 (GN-OG) | 22 | CTRL MOD. - POWERTRAIN # NOX CAN BUS #2 HIGH | EU5T-14474-FAB | ||||
| 4 | CBK04 (VT-RD) | 18 | FUSE - 9 OR CIRCUIT BREAKER | EU5T-14474-GAB | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1537
Service Part Number:
JU2Z-14S411-ACA
Gauge:
18
Pin material:
Silver
Cavities:
4
Vehicle Uses:
- Module - Differential Oil Temperature
- Module - Particulate Matter Bank Sensor
- Module - Reductant Quality
- Noise Generator
- Sensor - Fuel Rail Pressure and Temperature
- Sensor - Manifold Pressure/Intake Temperature
- Sensor - Turbo Intake Pressure/Temperature
- Valve - Active Exhaust Solenoid
