Connector End View (C3411) - INLINE
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C3411 | INLINE | BK | 1440514A005 | See Below | ||||

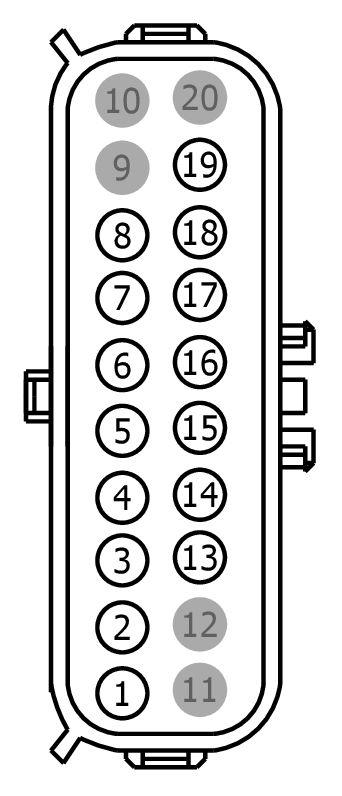

MALE
Harness
14405

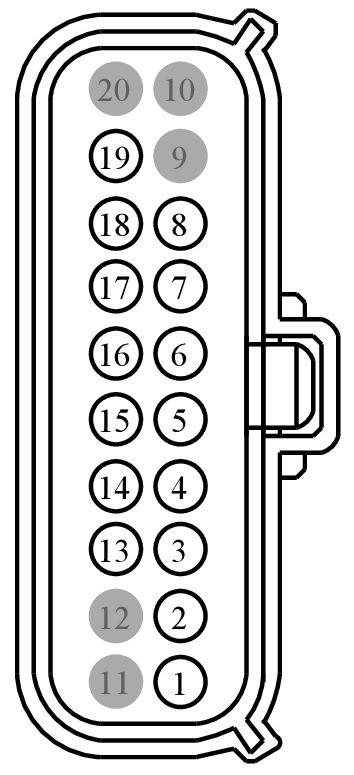

FEMALE
Harness
14A005
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| BU5T-14421-HA | EU2Z-14421-CA | 1.50 |
| 2L1T-14421-CA | EU2Z-14421-CA | 1.50 |
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CLS05 (BU-GY) | 20 | BU5T-14421-HA | |||
| 2 | CLS04 (YE-VT) | 22 | BU5T-14421-HA | |||
| 3 | CLS54 (BU-OG) | 22 | BU5T-14421-HA | |||
| 4 | CLS55 (GN-BU) | 22 | BU5T-14421-HA | |||
| 5 | CPL60 (BN-YE) | 22 | BU5T-14421-HA | |||
| 6 | CBBD8 (GY-OG) | 16 | 2L1T-14421-CA|BU5T-14421-HA | |||
| 6 | CBBD8 (GY-OG) | 20 | 2L1T-14421-CA|BU5T-14421-HA | |||
| 7 | RPK08 (YE-GN) | 22 | BU5T-14421-HA | |||
| 8 | VPK08 (WH-OG) | 22 | BU5T-14421-HA | |||
| 9 | * | * | N/A | |||
| 10 | * | * | N/A | |||
| 11 | * | * | N/A | |||
| 12 | * | * | N/A | |||
| 13 | CLS09 (WH-OG) | 18 | 2L1T-14421-CA | |||
| 14 | CLS53 (GY-VT) | 18 | 2L1T-14421-CA | |||
| 15 | CLS27 (GN-OG) | 18 | 2L1T-14421-CA | |||
| 16 | CLS08 (VT-GN) | 18 | 2L1T-14421-CA | |||
| 17 | CLS51 (WH-GN) | 18 | 2L1T-14421-CA | |||
| 18 | CLS23 (GY-OG) | 18 | 2L1T-14421-CA | |||
| 19 | CLS10 (GN-BN) | 16 | 2L1T-14421-CA | |||
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CLS05 (BU-GY) | 22 | JU5T-14474-AAA | |||
| 2 | CLS04 (YE-VT) | 22 | JU5T-14474-AAA | |||
| 3 | CLS54 (BU-OG) | 22 | JU5T-14474-AAA | |||
| 4 | CLS55 (GN-BU) | 22 | JU5T-14474-AAA | |||
| 5 | CPL60 (BN-YE) | 22 | JU5T-14474-AAA | |||
| 6 | CBBD8 (GY-OG) | 16 | JU5T-14474-ABA | |||
| 7 | RPK08 (YE-GN) | 22 | JU5T-14474-AAA | |||
| 8 | VPK08 (WH-OG) | 22 | JU5T-14474-AAA | |||
| 9 | * | * | N/A | |||
| 10 | * | * | N/A | |||
| 11 | * | * | N/A | |||
| 12 | * | * | N/A | |||
| 13 | CLS09 (WH-OG) | 18 | JU5T-14474-ABA | |||
| 14 | CLS53 (GY-VT) | 18 | JU5T-14474-ABA | |||
| 15 | CLS27 (GN-OG) | 18 | JU5T-14474-ABA | |||
| 16 | CLS08 (VT-GN) | 18 | JU5T-14474-ABA | |||
| 17 | CLS51 (WH-GN) | 18 | JU5T-14474-ABA | |||
| 18 | CLS23 (GY-OG) | 18 | JU5T-14474-ABA | |||
| 19 | CLS10 (GN-BN) | 18 | JU5T-14474-ABA | |||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1567
Service Part Number:
7U2Z-14S411-HB
Gauge:
16
Pin material:
Silver
Cavities:
20
Vehicle Uses:
- Connector - Inline
Pigtail Kit Part Number WPT-889
Service Part Number:
7U2Z-14S411-GA
Gauge:
16
Pin material:
Silver
Cavities:
20
Vehicle Uses:
- Connector - Inline
- For Mating Connector Refer To WPT-890
