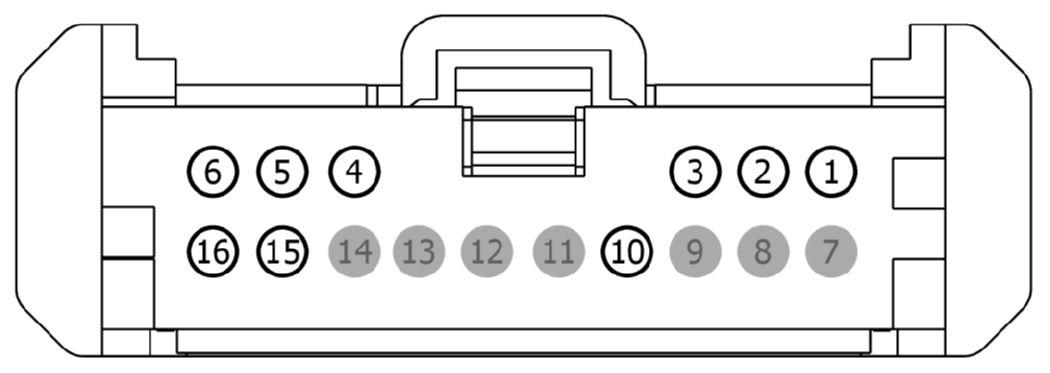

Connector End View (C3386) - PASSENGER MULTI-CONTOUR SEAT MODULE [SCMH]
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C3386 |
PASSENGER MULTI-CONTOUR SEAT MODULE [SCMH] |
BK |
14D233 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
SBX06 (GY-RD) |
22 |
POWER - SEAT # HEATED SEAT MODULE |
DU5T-14474-GAA |
| 2 |
VPSD7 (WH-VT) |
22 |
CTRL MOD. - LIN BUS # MULTICONTOUR SEAT TRIPLE VALVE MODULE |
DU5T-14474-GAA |
| 3 |
RPS99 (BU) |
22 |
CTRL MOD. - SEAT MULTICONTOUR # PUMP - |
DU5T-14474-GAA |
| 4 |
VDB07 (VT-OG) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW |
DU5T-14474-GAA |
| 5 |
VDB06 (GY-OG) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH |
DU5T-14474-GAA |
| 6 |
CPSJ5 (BU-GN) |
22 |
CTRL MOD. - MULTICONTOUR SEAT FRONT RIGHT # SWITCH RESISTIVE LADDER + |
DU5T-14474-GAA |
| 7 |
* |
* |
Not Used |
N/A |
| 8 |
* |
* |
Not Used |
N/A |
| 9 |
* |
* |
Not Used |
N/A |
| 10 |
CPS99 (YE) |
22 |
CTRL MOD. - SEAT MULTICONTOUR # PUMP + |
DU5T-14474-GAA |
| 11 |
* |
* |
Not Used |
N/A |
| 12 |
* |
* |
Not Used |
N/A |
| 13 |
* |
* |
Not Used |
N/A |
| 14 |
* |
* |
Not Used |
N/A |
| 15 |
RPSJ5 (GY) |
22 |
CTRL MOD. - MULTICONTOUR SEAT FRONT RIGHT # SWITCH RESISTIVE LADDER - |
DU5T-14474-GAA |
| 16 |
GD904 (BK-BU) |
22 |
GROUND - SEAT |
DU5T-14474-GAA |
