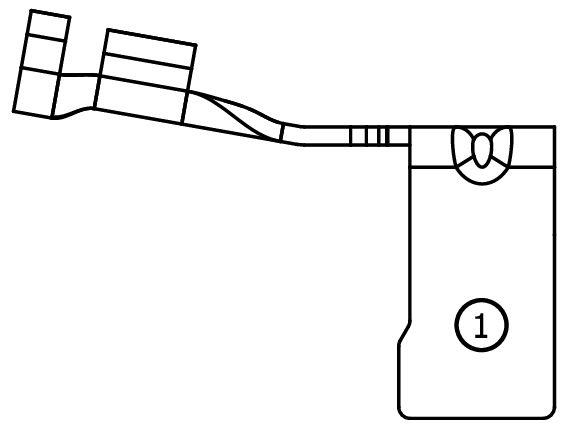

Connector End View (C3364B) - AUXILIARY BATTERY 1
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C3364B |
AUXILIARY BATTERY 1 |
14A280 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
SDC03 (RD) |
4 |
BATTERY OUTPUT # AUXILIARY BATTERY INPUT |
N/A |
