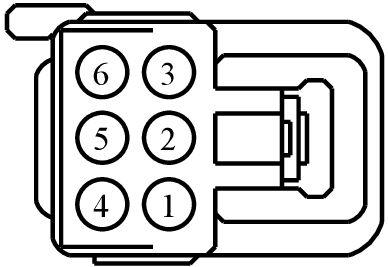

Connector End View (C3304B) - HEATED REAR SEAT MODULE
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C3304B | HEATED REAR SEAT MODULE | GN | 14A699 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| AU5T-14474-DA | DU2Z-14474-DA | 1.50 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CBBA4 (VT-GN) | 22 | FUSE - 19 / 48 OR CIRCUIT BREAKER | AU5T-14474-DA | ||||
| 2 | CBP36 (BU-BN) | 22 | FUSE - 36 OR CIRCUIT BREAKER | AU5T-14474-DA | ||||
| 3 | CBBA4 (VT-GN) | 22 | FUSE - 19 / 48 OR CIRCUIT BREAKER | AU5T-14474-DA | ||||
| 4 | CHS58 (WH) | 20 | CTRL MOD. - REAR HEATED SEAT LEFT # CUSHION HEATER + | AU5T-14474-DA | ||||
| 5 | GD347 (BK) | 22 | GROUND - PILLAR C OR QUARTER PANEL LEFT | AU5T-14474-DA | ||||
| 6 | CHS54 (WH-GN) | 20 | CTRL MOD. - REAR HEATED SEAT RIGHT # CUSHION HEATER + | AU5T-14474-DA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1032
Service Part Number:
9U2Z-14S411-XA
Gauge:
14
Pin material:
Silver
Cavities:
6
Vehicle Uses:
- Module - Climate Control Seat
- Module - Heated Seat
