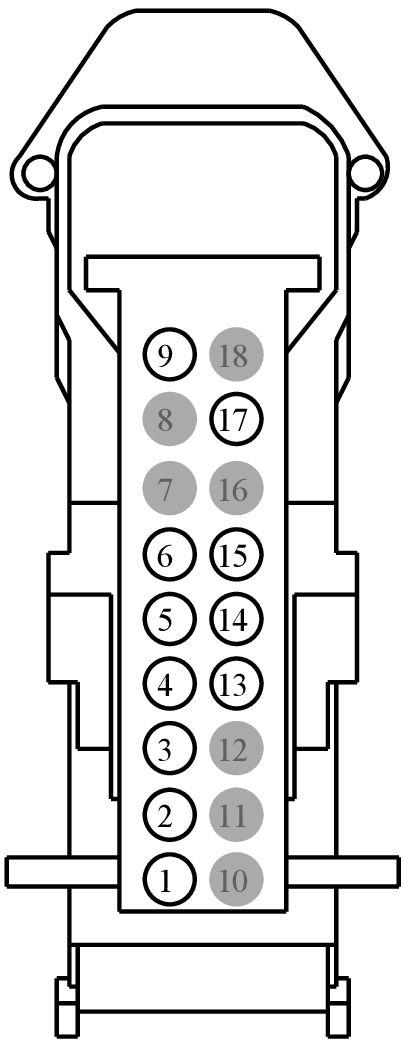

Connector End View (C3245) - GEAR SHIFT MODULE (GSM)

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3245	GEAR SHIFT MODULE (GSM)	NA	14B079	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
2L1T-14474-LA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBP07 (WH-RD)	20	FUSE - 7 OR CIRCUIT BREAKER	2L1T-14474-LA
2	VDB26 (GY-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW	2L1T-14474-AA
3	VDB25 (GN-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH	2L1T-14474-AA
4	CPL93 (GY-OG)	22	SWITCH - LATCH DRIVER UPPER # AJAR	2L1T-14474-AA
5	CET43 (GY)	22	SWITCH - TRANSMISSION SELECT SHIFT # UP (SST)	2L1T-14474-AA
6	CET42 (GN-VT)	22	SWITCH - TRANSMISSION SELECT SHIFT # DOWN (SST)	2L1T-14474-AA
7	*	*	Not Used	N/A
8	*	*	Not Used	N/A
9	GD214 (BK-BU)	20	GROUND - INSTRUMENT PANEL STRUCTURE	2L1T-14474-LA
10	*	*	Not Used	N/A
11	*	*	Not Used	N/A
12	*	*	Not Used	N/A
13	VE475 (WH-VT)	22	CTRL MOD. - POWERTRAIN # TRANSMISSION CAN BUS HIGH SPEED LOW	2L1T-14474-AA
14	VE474 (BU-GN)	22	CTRL MOD. - POWERTRAIN # TRANSMISSION CAN BUS HIGH SPEED HIGH	2L1T-14474-AA
15	CPL26 (GN-VT)	22	SWITCH - LATCH DRIVER # AJAR	2L1T-14474-AA
16	*	*	Not Used	N/A
17	RE472 (BU)	22	CTRL MOD. - POWERTRAIN # SIGNAL RETURN TRANSMISSION (SST-SIGRTN)	2L1T-14474-AA
18	*	*	Not Used	N/A

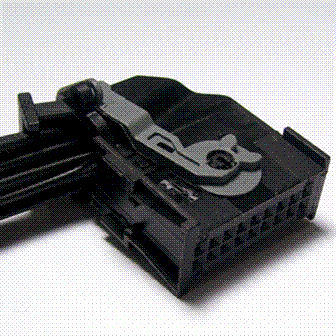

Available Pigtail Kits

Pigtail Kit Part Number WPT-1399

Courtesy of FORD MOTOR COMPANY

Service Part Number:

EU2Z-14S411-LA

Gauge:

Pin material:

Tin (greased)

Cavities:

Vehicle Uses:

Module - Gear Shift
