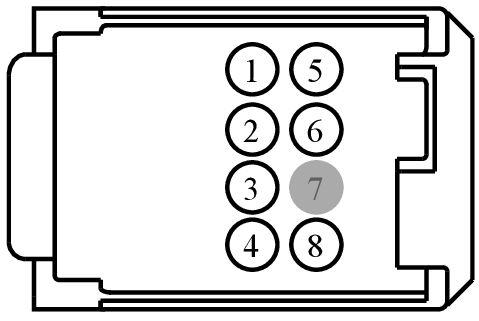

Connector End View (C3155B) - AUDIO DIGITAL SIGNAL PROCESSING (DSP) MODULE

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3155B	AUDIO DIGITAL SIGNAL PROCESSING (DSP) MODULE	BK	14A005	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-EB	DU2Z-14474-AA	0.64
9U5T-14474-DB	DU2Z-14474-AA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	GD347 (BK-VT)	18	GROUND - PILLAR C OR QUARTER PANEL LEFT	9U5T-14474-EB
2	RMEB7 (BU-OG)	20	CTRL MOD. - AUDIO # SPEAKER LEFT REAR TWEETER 2 -	9U5T-14474-DB
3	CME27 (YE-VT)	22	CTRL MOD. - AUDIO # ENABLE / CLIPPING	9U5T-14474-DB
4	SBP28 (GN-RD)	18	FUSE - 28 OR CIRCUIT BREAKER	9U5T-14474-EB
5	GD347 (BK-VT)	18	GROUND - PILLAR C OR QUARTER PANEL LEFT	9U5T-14474-EB
6	VMEB7 (GN-BU)	20	CTRL MOD. - AUDIO # SPEAKER LEFT REAR TWEETER 2 +	9U5T-14474-DB
7	*	*	Not Used	N/A
8	SBP28 (GN-RD)	18	FUSE - 28 OR CIRCUIT BREAKER	9U5T-14474-EB

Available Pigtail Kits

Pigtail Kit Part Number WPT-1457

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-AVA

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses:

Module - Front Interface
Radio - Amplifier
