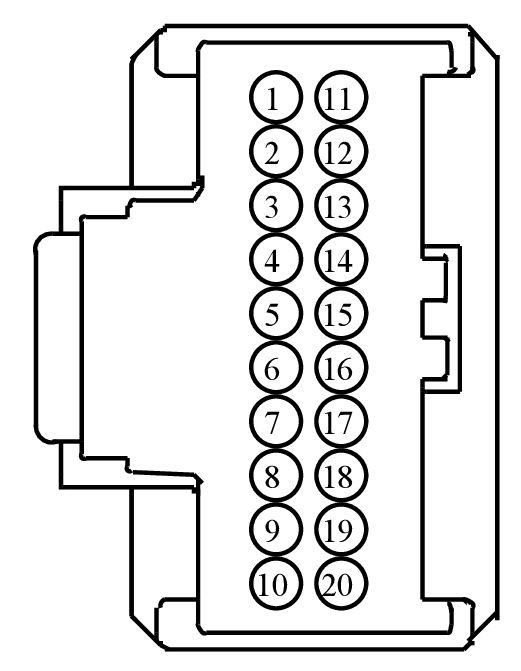

Connector End View (C3155A) - AUDIO DIGITAL SIGNAL PROCESSING (DSP) MODULE

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3155A	AUDIO DIGITAL SIGNAL PROCESSING (DSP) MODULE	BN	14A005	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-EB	DU2Z-14474-AA	0.64
9U5T-14474-DB	DU2Z-14474-AA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VDB29 (GN-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH	9U5T-14474-EB
2	RME16 (YE-GY)	20	CTRL MOD. - AUDIO # SPEAKER RIGHT MIDDLE -	9U5T-14474-DB
3	RME06 (GY-YE)	20	CTRL MOD. - AUDIO # SPEAKER CENTER FRONT IP -	9U5T-14474-DB
4	RME10 (WH-OG)	20	CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT DOOR (WOOFER) -	9U5T-14474-DB
5	RME01 (GY)	22	CTRL MOD. - AUDIO # SPEAKER SUBWOOFER LEFT REAR 1 -	9U5T-14474-DB
6	RME15 (GY-BU)	20	CTRL MOD. - AUDIO # SPEAKER LEFT MIDDLE -	9U5T-14474-DB
7	RME07 (WH-BN)	20	CTRL MOD. - AUDIO # SPEAKER LEFT FRONT DOOR (WOOFER) -	9U5T-14474-DB
8	RMEB6 (YE-VT)	20	CTRL MOD. - AUDIO # SPEAKER LEFT REAR MIDRANGE 2 -	9U5T-14474-DB
9	VMEL9 (VT-GN)	20	CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT HEADLINER -	9U5T-14474-DB
10	VMEM1 (WH-BN)	20	CTRL MOD. - AUDIO # SPEAKER LEFT FRONT HEADLINER -	9U5T-14474-DB
11	VDB30 (WH-GN)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW	9U5T-14474-EB
12	VME16 (VT-GY)	20	CTRL MOD. - AUDIO # SPEAKER RIGHT MIDDLE +	9U5T-14474-DB
13	VME06 (GN)	20	CTRL MOD. - AUDIO # SPEAKER CENTER FRONT IP +	9U5T-14474-DB
14	VME10 (WH-VT)	20	CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT DOOR (WOOFER) +	9U5T-14474-DB
15	VME01 (GN-VT)	22	CTRL MOD. - AUDIO # SPEAKER SUBWOOFER LEFT REAR 1 +	9U5T-14474-DB
16	VME15 (GN-BU)	20	CTRL MOD. - AUDIO # SPEAKER LEFT MIDDLE +	9U5T-14474-DB
17	VME07 (WH)	20	CTRL MOD. - AUDIO # SPEAKER LEFT FRONT DOOR (WOOFER) +	9U5T-14474-DB
18	VMEB6 (VT-BN)	20	CTRL MOD. - AUDIO # SPEAKER LEFT REAR MIDRANGE 2 +	9U5T-14474-DB
19	VMEL8 (BN-YE)	20	CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT HEADLINER +	9U5T-14474-DB
20	VMEM0 (YE-OG)	20	CTRL MOD. - AUDIO # SPEAKER LEFT FRONT HEADLINER +	9U5T-14474-DB

Available Pigtail Kits

Pigtail Kit Part Number WPT-1654

Service Part Number:

9U2Z-14S411-AHB

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses:

Module - All Wheel Drive
Module - Climate Control Seat
Module - Heated Seat (driver)
Module - Transfer Case Shift Control
Radio - Amplifier
Switch - Seat (driver)
Switch - Seat (passenger)
