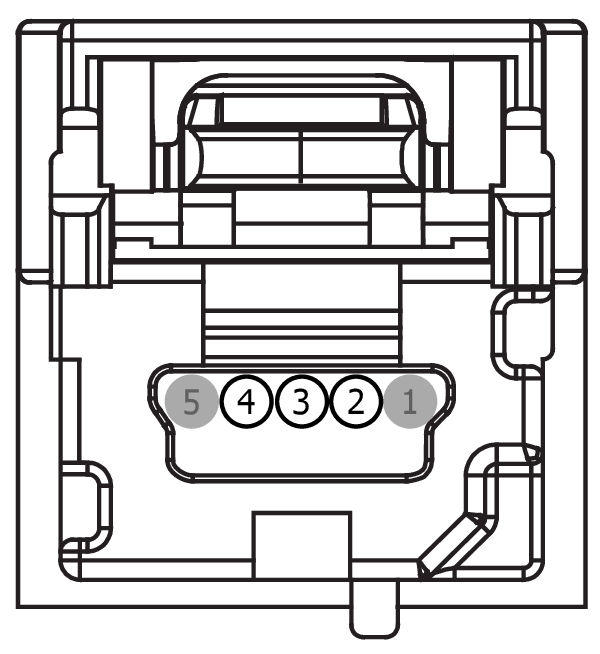

Connector End View (C3154C) - AUDIO DIGITAL SIGNAL PROCESSING (DSP) MODULE
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C3154C |
AUDIO DIGITAL SIGNAL PROCESSING (DSP) MODULE |
BU |
14F662 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
* |
* |
Not Used |
N/A |
| 2 |
A2B DATA + (NA-BU) |
22 |
A2B DATA + |
N/A |
| 3 |
A2B DATA - (NA) |
22 |
A2B DATA - |
N/A |
| 4 |
A2B SHIELD (*) |
22 |
A2B SHIELD |
N/A |
| 5 |
* |
* |
Not Used |
N/A |
