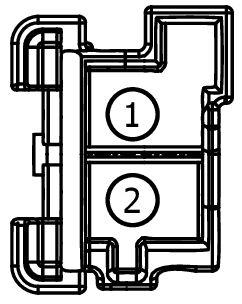

Connector End View (C3106) - TURBINE SHAFT SPEED (TSS) SENSOR
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C3106 |
TURBINE SHAFT SPEED (TSS) SENSOR |
GN |
7G276 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
| 8V5T-14421-AFA |
LU2Z-14421-BA |
1.20 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
TSS (WH-VT) |
20 |
SENSOR - TURBINE/TRANSMISSION SHAFT SPEED (TSS) + |
8V5T-14421-AFA |
| 2 |
V9REF (BU) |
20 |
VOLTAGE REFERENCE |
8V5T-14421-AFA |
