Connector End View (C3052) - INLINE

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C3052	INLINE	BK	14D23314D230	Not Available

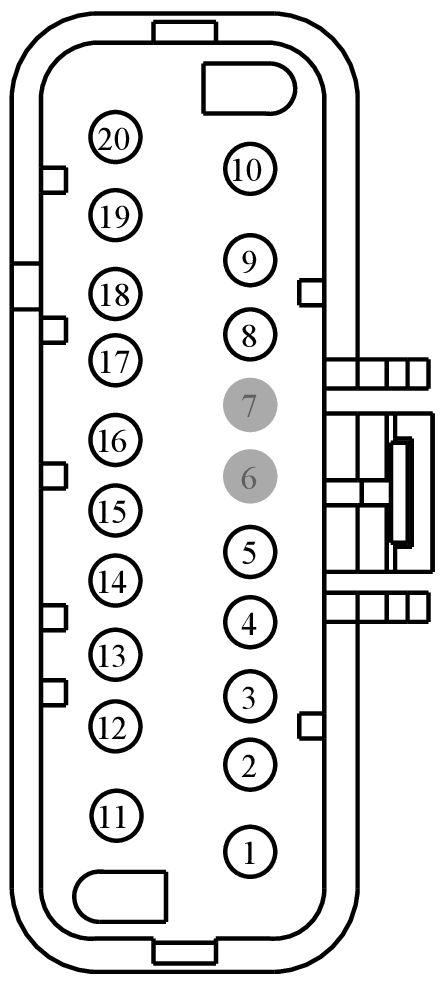

MALE

Harness

14D233

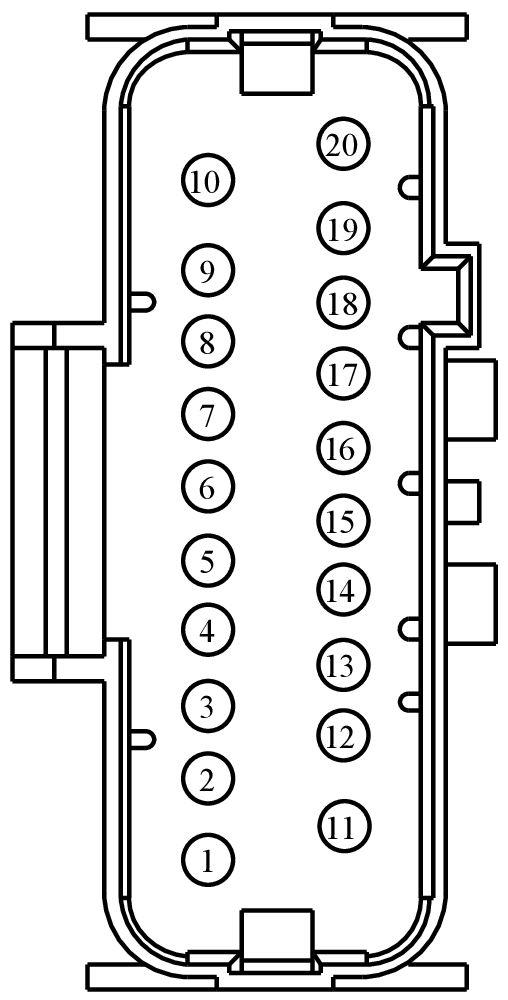

FEMALE

Harness

14D230

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
7C3T-14474-CA	DU2Z-14474-DA	1.50

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	GD904 (BK-BU)	22	N/A
2	CPSJ5 (BU-GN)	22	N/A
3	RPSJ5 (GY)	22	N/A
4	VDB06 (GY-OG)	22	N/A
5	VDB07 (VT-OG)	22	N/A
6	VPS12 (VT-OG)	20	N/A
7	RPS12 (GN-OG)	20	N/A
8	CPS18 (BN-GN)	18	N/A
9	CPS19 (GY-VT)	18	N/A
10	CPS08 (VT-OG)	14	N/A
11	CPS07 (GY-BN)	14	N/A
12	VPSD7 (WH-VT)	22	N/A
13	RHS08 (VT-WH)	20	N/A
14	RHS02 (BU-OG)	16	N/A
14	RHS07 (BU)	16	N/A
15	CPS99 (YE)	22	N/A
16	RPS99 (BU)	22	N/A
17	VHS21 (BU-WH)	20	N/A
18	CHS12 (YE-GN)	16	N/A
19	CHS08 (BN-YE)	20	N/A

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	GD904 (BK-BU)	16	N/A
2	CPSJ5 (BU-GN)	20	N/A
3	RPSJ5 (GY)	20	N/A
4	VDB06 (GY-OG)	20	N/A
5	VDB07 (VT-OG)	20	N/A
6	*	*	N/A
7	*	*	N/A
8	CPS18 (BN-GN)	18	N/A
9	CPS19 (GY-VT)	18	N/A
10	CPS30 (VT-BN)	14	N/A
11	CPS29 (WH-BN)	14	N/A
12	VPSD7 (WH-VT)	22	7C3T-14474-CA
13	RHS08 (VT-WH)	20	N/A
14	GD904 (BK-BU)	16	N/A
14	RHS07 (BU)	16	N/A
15	CPS99 (YE)	20	N/A
16	RPS99 (BU)	20	N/A
17	VHS21 (BU-WH)	20	N/A
18	CHS12 (YE-GN)	16	N/A
19	CHS08 (BN-YE)	20	N/A
