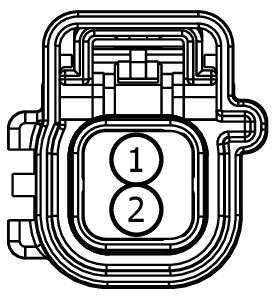

Connector End View (C3051) - INLINE
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C3051 | INLINE | YE | 14D23114C687/14D232 | Not Available | ||||
MALE
Harness
14D231
FEMALE
Harness
14C687/14D232
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CR106 (VT-GY) | 20 | N/A | |||
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CR106 (YE-OG) | 20 | N/A | |||
| 1 | RR106 (YE-OG) | 20 | N/A | |||
| 2 | CR106 (VT-GY) | 20 | N/A | |||
