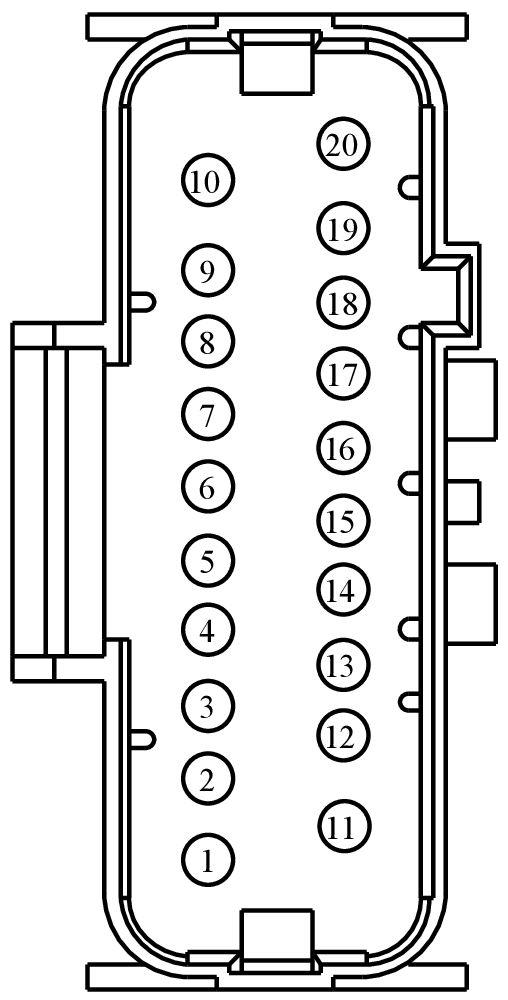

Connector End View (C3050) - INLINE

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C3050	INLINE	BK	14D23214D231	Not Available

MALE

Harness

14D232

FEMALE

Harness

14D231

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	GD904 (BK-BU)	22	N/A
2	CPSJ5 (BU-GN)	22	N/A
3	RPSJ5 (GY)	22	N/A
4	VDB06 (GY-OG)	22	N/A
5	VDB07 (VT-OG)	22	N/A
6	VPS12 (GY-OG)	20	N/A
7	RPS12 (YE-VT)	20	N/A
8	CPS18 (BN-GN)	18	N/A
9	CPS19 (GY-VT)	18	N/A
10	CPS07 (GY-BN)	14	N/A
11	CPS08 (VT-OG)	14	N/A
12	VPSD7 (WH-VT)	22	N/A
13	RHS03 (GY-OG)	20	N/A
14	RHS02 (BU-OG)	16	N/A
15	CPS99 (YE)	22	N/A
16	RPS99 (BU)	22	N/A
17	VHS16 (BU-GN)	20	N/A
18	CHS12 (YE-GN)	16	N/A
19	CHS03 (GN-BN)	20	N/A

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	GD904 (BK-BU)	16	N/A
2	CPSJ5 (BU-GN)	20	N/A
3	RPSJ5 (GY)	20	N/A
4	VDB06 (GY-OG)	20	N/A
5	VDB07 (VT-OG)	20	N/A
6	VPS12 (GY-OG)	20	N/A
7	RPS12 (YE-VT)	20	N/A
8	CPS18 (BN-GN)	18	N/A
9	CPS19 (GY-VT)	18	N/A
10	CPS07 (GY-BN)	14	N/A
10	CPS29 (WH-BN)	14	N/A
11	CPS08 (VT-OG)	14	N/A
11	CPS30 (VT-BN)	14	N/A
12	VPSD7 (WH-VT)	22	N/A
13	RHS03 (GY-OG)	20	N/A
14	GD904 (BK-BU)	16	N/A
14	RHS02 (BU-OG)	16	N/A
15	CPS99 (YE)	20	N/A
16	RPS99 (BU)	20	N/A
17	VHS16 (BU-GN)	20	N/A
18	CHS12 (YE-GN)	16	N/A
19	CHS03 (GN-BN)	20	N/A
