Connector End View (C3020) - SUBWOOFER SPEAKER

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

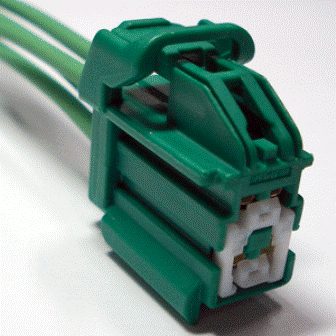

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3020	SUBWOOFER SPEAKER	GN	14A005	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
AU5T-14474-DA	DU2Z-14474-DA	1.50

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VME01 (GN-VT)	22	CTRL MOD. - AUDIO # SPEAKER SUBWOOFER LEFT REAR 1 +	AU5T-14474-DA
2	RME01 (GY)	22	CTRL MOD. - AUDIO # SPEAKER SUBWOOFER LEFT REAR 1 -	AU5T-14474-DA
3	*	*	Not Used	N/A
4	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1016

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-FFB

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Motor - Steering Column Adjust
Speaker - Subwoofer
Transceiver - Passive Anti-Theft (PATS)
