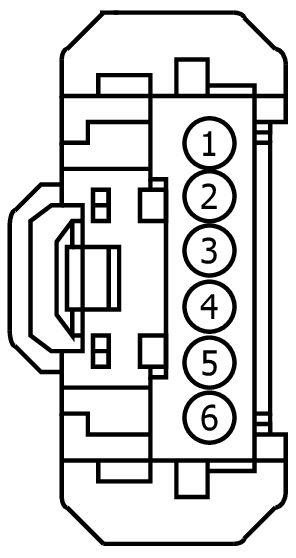

Connector End View (C2998) - STEERING WHEEL SWITCH LH
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C2998 |
STEERING WHEEL SWITCH LH |
BK |
PIA |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
VLN04 (*) |
* |
CTRL MOD. - IP/SWITCH ILLUMINATION |
N/A |
| 2 |
LX103 (*) |
* |
A/D CHANNEL 1 |
N/A |
| 3 |
LX104 (*) |
* |
A/D CHANNEL 2 |
N/A |
| 4 |
LX105 (*) |
* |
A/D CHANNEL 3 |
N/A |
| 5 |
RX101 (*) |
* |
RETURN LEFT |
N/A |
| 6 |
GD215 (*) |
* |
GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT |
N/A |
