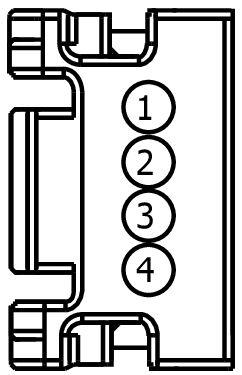

Connector End View (C2830) - TRAILER BRAKE CONTROL SWITCH
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C2830 |
TRAILER BRAKE CONTROL SWITCH |
BK |
14401 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
| DU5T-14474-BA |
LU2Z-14474-AA |
0.50 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
CBP21 (BU-GY) |
22 |
FUSE - 21 OR CIRCUIT BREAKER |
DU5T-14474-BA |
| 2 |
VAT37 (BN-WH) |
22 |
CTRL MOD. - TRAILER TOW # LIN BUS |
DU5T-14474-BA |
| 3 |
VLN04 (VT-GY) |
22 |
CTRL MOD. - IP/SWITCH ILLUMINATION |
DU5T-14474-BA |
| 4 |
GD216 (BK-VT) |
22 |
GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT |
DU5T-14474-BA |
