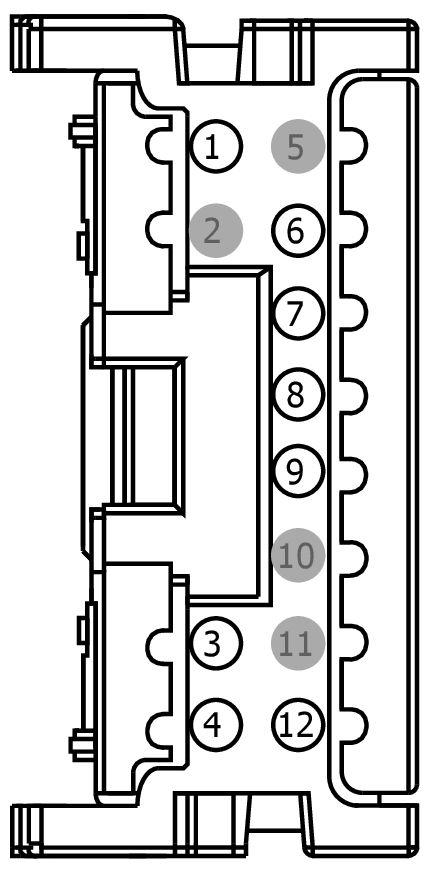

Connector End View (C2826A) - DRIVER STATUS MONITOR CAMERA MODULE (CMR)
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C2826A |
DRIVER STATUS MONITOR CAMERA MODULE (CMR) |
BK |
14401 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
| DU5T-14474-BA |
LU2Z-14474-AA |
0.50 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
SBP31 (WH-RD) |
22 |
FUSE - 31 OR CIRCUIT BREAKER |
DU5T-14474-BA |
| 2 |
* |
* |
Not Used |
N/A |
| 3 |
VDB49 (YE-OG) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED FD HIGH |
DU5T-14474-BA |
| 4 |
VDB50 (BU-OG) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED FD LOW |
DU5T-14474-BA |
| 5 |
* |
* |
Not Used |
N/A |
| 6 |
VRC08 (WH-GN) |
22 |
CTRL MOD. - RH DRIVER STATUS MONITOR + |
DU5T-14474-BA |
| 7 |
RRC08 (BU-OG) |
22 |
CTRL MOD. - RH DRIVER STATUS MONITOR - |
DU5T-14474-BA |
| 8 |
RRC07 (GY-OG) |
22 |
CTRL MOD. - LH DRIVER STATUS MONITOR - |
DU5T-14474-BA |
| 9 |
VRC07 (BU-GN) |
22 |
CTRL MOD. - LH DRIVER STATUS MONITOR + |
DU5T-14474-BA |
| 10 |
* |
* |
Not Used |
N/A |
| 11 |
* |
* |
Not Used |
N/A |
| 12 |
GD214 (BK-BU) |
22 |
GROUND - INSTRUMENT PANEL STRUCTURE |
DU5T-14474-BA |
