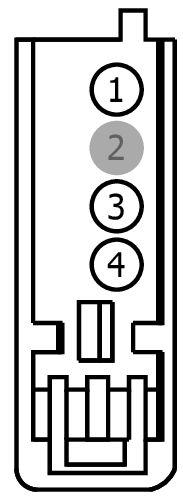

Connector End View (C2809A) - MEDIA HUB
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C2809A |
MEDIA HUB |
BK |
14401 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
LME89 (YE-BU) |
22 |
CTRL MOD. - MEDIA CONNECTIVITY POWER |
GU5T-14474-AAB |
| 2 |
* |
* |
Not Used |
N/A |
| 3 |
VLN04 (VT-GY) |
22 |
CTRL MOD. - IP/SWITCH ILLUMINATION |
GU5T-14474-AAB |
| 4 |
RME89 (WH-BU) |
22 |
CTRL MOD. - MEDIA CONNECTIVITY GROUND |
GU5T-14474-AAB |
