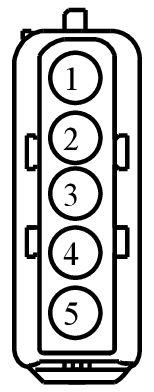

Connector End View (C2603) - ELECTRIC BOOSTER HEATER
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C2603 |
ELECTRIC BOOSTER HEATER |
BK |
19F561 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
| CU5T-14474-MA |
Not Available |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
CHP02 (WH-OG) |
12 |
RELAY - PTC HEATER BANK 1 |
CU5T-14474-MA |
| 2 |
GD132 (BK-VT) |
10 |
GROUND - HEADLAMP PANEL/GOR RIGHT # 2ND POINT |
CU5T-14474-MA |
| 3 |
CHP06 (WH-GN) |
12 |
RELAY - PTC HEATER BANK 2 |
CU5T-14474-MA |
| 4 |
GD132 (BK-VT) |
10 |
GROUND - HEADLAMP PANEL/GOR RIGHT # 2ND POINT |
CU5T-14474-MA |
| 5 |
CHP07 (BN-VT) |
12 |
RELAY - PTC HEATER BANK 3 |
CU5T-14474-MA |
