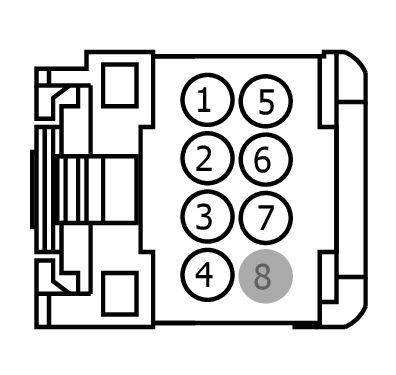

Connector End View (C2599) - PRO TRAILER BACKUP ASSIST CONTROL KNOB
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C2599 |
PRO TRAILER BACKUP ASSIST CONTROL KNOB |
BK |
14401 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
| 3F2T-14474-SA |
DU2Z-14474-BA |
0.64 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
LAT30 (YE-GY) |
22 |
SWITCH - TRAILER BACKING ASSIST+ |
3F2T-14474-SA |
| 2 |
VAT30 (VT-GN) |
22 |
SWITCH - TRAILER BACKING ASSIST SIGNAL |
3F2T-14474-SA |
| 3 |
RAT30 (BU-BN) |
22 |
SWITCH - TRAILER BACKING ASSIST- |
3F2T-14474-SA |
| 4 |
VLN04 (VT-GY) |
22 |
CTRL MOD. - IP/SWITCH ILLUMINATION |
3F2T-14474-SA |
| 5 |
LAT38 (BU-OG) |
22 |
SWITCH - TRAILER BACKING ASSIST # ENABLE |
3F2T-14474-SA |
| 6 |
GD216 (BK-VT) |
22 |
GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT |
3F2T-14474-SA |
| 7 |
CAT39 (GN-VT) |
22 |
CTRL MOD. - TRAILER TOW # INDICATOR TRAILER BACKING ASSIST |
3F2T-14474-SA |
| 8 |
* |
* |
Not Used |
N/A |
