Connector End View (C2565) - INLINE
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C2565 | INLINE | LT GY | 14A00514401 | See Below | ||||

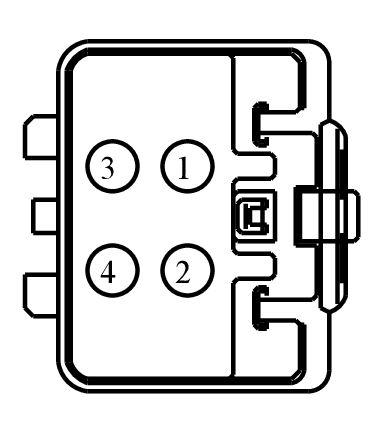

MALE
Harness
14A005

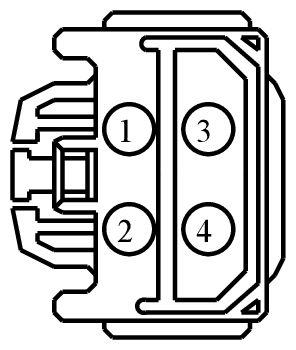

FEMALE
Harness
14401
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14474-CCA | JU2Z-14474-AB | 6.30 |
| 97BG-14421-CAA | KU2Z-14421-BA | 6.30 |
| 97BG-14421-CCA | KU2Z-14421-AA | 6.30 |
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | HYA01 (OG-GN) | 16 | 97BG-14421-CAA|97BG-14421-CCA | |||
| 1 | HYA10 (OG-GY) | 12 | 97BG-14421-CAA|97BG-14421-CCA | |||
| 2 | HYA02 (OG-WH) | 16 | 97BG-14421-CAA|97BG-14421-CCA | |||
| 2 | HYA12 (OG-YE) | 12 | 97BG-14421-CAA|97BG-14421-CCA | |||
| 3 | RYA09 (GY) | 12 | 97BG-14421-CAA|97BG-14421-CCA | |||
| 3 | RYA09 (GY) | 20 | 97BG-14421-CAA|97BG-14421-CCA | |||
| 4 | HYA10 (OG-GY) | 12 | ||||
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | HYA10 (OG-GY) | 12 | 97BG-14474-CCA | |||
| 2 | HYA12 (OG-YE) | 12 | 97BG-14474-CCA | |||
| 3 | RYA09 (GY) | 12 | 97BG-14474-CCA | |||
| 4 | HYA10 (OG-GY) | 12 | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1408
Service Part Number:
EU2Z-14S411-XA
Gauge:
10
Pin material:
Tin
Cavities:
4
Vehicle Uses:
- Mating Connector WPT-1177
- Switch - Upfitter
Pigtail Kit Part Number WPT-1177
Service Part Number:
AU2Z-14S411-BHA
Gauge:
10
Pin material:
Tin
Cavities:
4
Vehicle Uses:
- Mating Connector WPT-1408
- Resistor - Blower Motor (Front)
- Switch - Heater / A/C Blower (Front)
