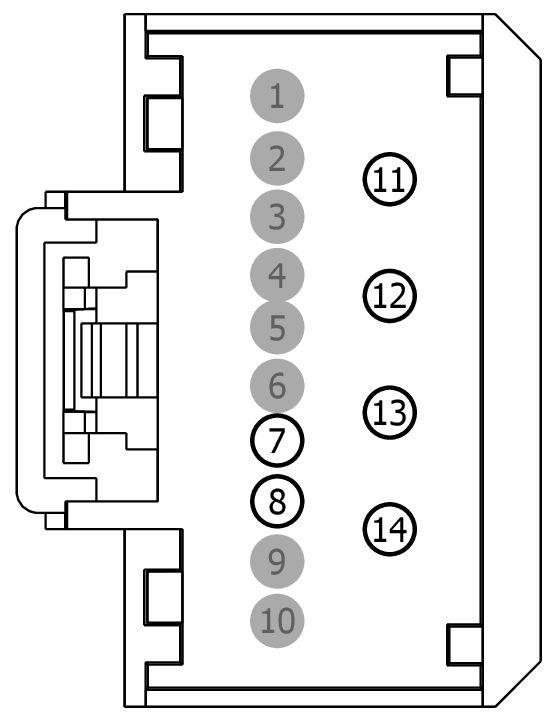

Connector End View (C2498F) - TRAILER MODULE (TRM)
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C2498F |
TRAILER MODULE (TRM) |
GY |
14A005 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
| 9U5T-14474-DB |
DU2Z-14474-AA |
0.64 |
| 3M5T-14474-HBA |
DU2Z-14474-EA |
2.80 |
| DU5T-14474-KAB |
Not Available |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
* |
* |
Not Used |
N/A |
| 2 |
* |
* |
Not Used |
N/A |
| 3 |
* |
* |
Not Used |
N/A |
| 4 |
* |
* |
Not Used |
N/A |
| 5 |
* |
* |
Not Used |
N/A |
| 6 |
* |
* |
Not Used |
N/A |
| 7 |
CAT40 (GN-BN) |
22 |
CTRL MOD. - TRAILER TOW # ANTI-THEFT |
9U5T-14474-DB |
| 8 |
CAT11 (BN) |
20 |
CTRL MOD. - TRAILER TOW # PARK LAMPS |
9U5T-14474-DB |
| 9 |
* |
* |
Not Used |
N/A |
| 10 |
* |
* |
Not Used |
N/A |
| 11 |
CAT06 (YE) |
16 |
CTRL MOD. - TRAILER TOW # TURN SIGNAL LEFT |
DU5T-14474-KAB |
| 12 |
GD233 (BK-GN) |
18 |
GROUND - COWL SIDE/PILLAR A LEFT |
DU5T-14474-KAB |
| 13 |
CAT09 (GN) |
16 |
CTRL MOD. - TRAILER TOW # TURN SIGNAL RIGHT |
DU5T-14474-KAB |
| 14 |
SBB91 (BU-RD) |
16 |
FUSE - 91 OR CIRCUIT BREAKER |
3M5T-14474-HBA |
