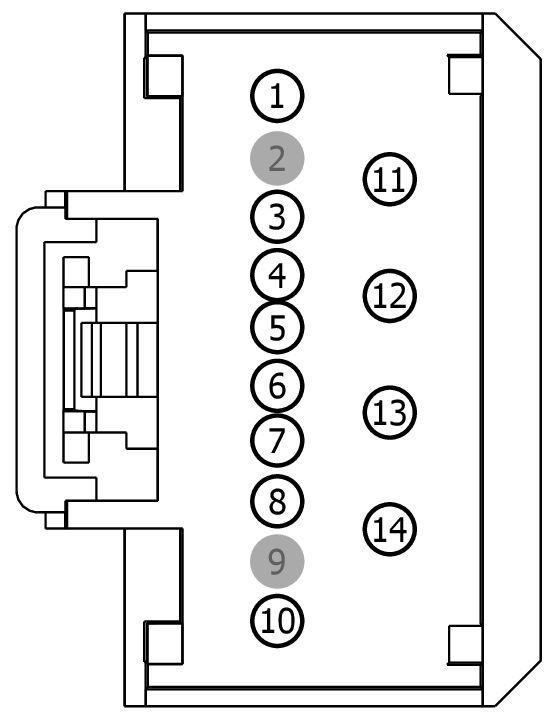

Connector End View (C2498C) - TRAILER MODULE (TRM)
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C2498C |
TRAILER MODULE (TRM) |
BK |
14A005 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
| DU5T-14474-MAB |
Not Available |
| 9U5T-14474-DB |
DU2Z-14474-AA |
0.64 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
CAT39 (GN-VT) |
22 |
CTRL MOD. - TRAILER TOW # INDICATOR TRAILER BACKING ASSIST |
9U5T-14474-DB |
| 2 |
* |
* |
Not Used |
N/A |
| 3 |
LAT38 (BU-OG) |
22 |
SWITCH - TRAILER BACKING ASSIST # ENABLE |
9U5T-14474-DB |
| 4 |
RAT30 (BU-BN) |
22 |
SWITCH - TRAILER BACKING ASSIST- |
9U5T-14474-DB |
| 5 |
LAT30 (YE-GY) |
22 |
SWITCH - TRAILER BACKING ASSIST+ |
9U5T-14474-DB |
| 6 |
VDB29 (GN-BU) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH |
9U5T-14474-DB |
| 7 |
VDB30 (WH-GN) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW |
9U5T-14474-DB |
| 8 |
VAT30 (VT-GN) |
22 |
SWITCH - TRAILER BACKING ASSIST SIGNAL |
9U5T-14474-DB |
| 9 |
* |
* |
Not Used |
N/A |
| 10 |
VAT37 (BN-WH) |
22 |
CTRL MOD. - TRAILER TOW # LIN BUS |
9U5T-14474-DB |
| 11 |
SBBA7 (BN-RD) |
12 |
FUSE - 107 OR CIRCUIT BREAKER |
DU5T-14474-MAB |
| 12 |
CAT14 (OG) |
12 |
RELAY - TRAILER TOW BATTERY CHARGING |
DU5T-14474-MAB |
| 13 |
SBB42 (YE-RD) |
12 |
FUSE - 42 OR CIRCUIT BREAKER |
DU5T-14474-MAB |
| 14 |
CAT19 (BU) |
12 |
CTRL MOD. - TRAILER TOW # BRAKES |
DU5T-14474-MAB |
