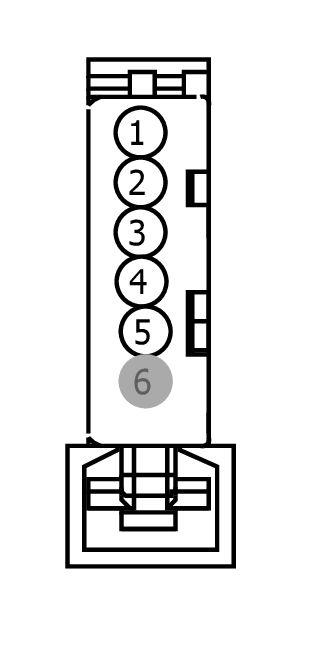

Connector End View (C2480) - INSTRUMENT PANEL CENTER STACK LEFT SWITCH
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C2480 | INSTRUMENT PANEL CENTER STACK LEFT SWITCH | BK | 14C210 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 3F2T-14474-SA | DU2Z-14474-BA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CE469 (BN) | 22 | CTRL MOD. - POWERTRAIN # START/STOP ENABLE/DISABLE SWITCH INDICATOR | 3F2T-14474-SA | ||||
| 2 | CMP40 (WH-GN) | 22 | SWITCH - CAMERA ENABLE | 3F2T-14474-SA | ||||
| 3 | GD216 (BK-VT) | 22 | GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT | 3F2T-14474-SA | ||||
| 4 | CH253 (WH-BN) | 22 | CTRL MOD. - CLIMATE # START/STOP SWITCH DISABLE | 3F2T-14474-SA | ||||
| 4 | CMF11 (BU-OG) | 22 | SWITCH - FRONTAL COLLISION AVOIDANCE (FCW) | 3F2T-14474-SA | ||||
| 4 | CYA17 (YE-GY) | 22 | CTRL MOD. - POWER TO THE BOX | 3F2T-14474-SA | ||||
| 5 | VLN04 (VT-GY) | 22 | CTRL MOD. - IP/SWITCH ILLUMINATION | 3F2T-14474-SA | ||||
| 6 | * | * | Not Used | N/A | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1553
Service Part Number:
JU2Z-14S411-ZA
Gauge:
20
Pin material:
Silver
Cavities:
6
Vehicle Uses:
- Camera - Front
- Switch - Hazard Warning
- Switch - Lane Keeping System
- Switch - Start/Stop
