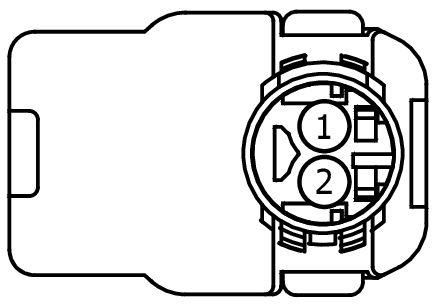

Connector End View (C2433) - PASSENGER KNEE AIRBAG
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C2433 |
PASSENGER KNEE AIRBAG |
YE-BK |
14401 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
CR169 (WH-BU) |
20 |
CTRL MOD. - AIR BAG PASSENGER KNEE + |
N/A |
| 2 |
RR169 (GY-VT) |
20 |
CTRL MOD. - AIR BAG PASSENGER KNEE - |
N/A |
