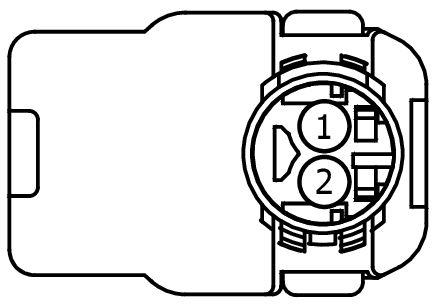

Connector End View (C2432) - DRIVER KNEE AIRBAG
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C2432 |
DRIVER KNEE AIRBAG |
YE-BK |
14401 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
CR139 (VT-WH) |
20 |
CTRL MOD. - AIR BAG DRIVER KNEE + |
N/A |
| 2 |
RR139 (YE) |
20 |
CTRL MOD. - AIR BAG DRIVER KNEE - |
N/A |
