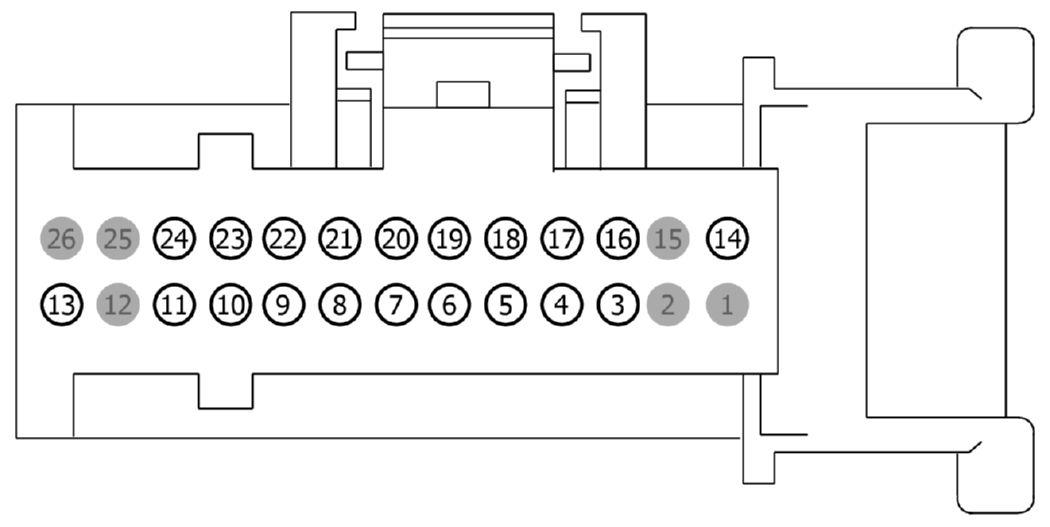

Connector End View (C2431A) - GATEWAY MODULE A (GWM)
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C2431A |
GATEWAY MODULE A (GWM) |
BK |
14401 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
| 9U5T-14474-DB |
DU2Z-14474-AA |
0.64 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
* |
* |
Not Used |
N/A |
| 2 |
* |
* |
Not Used |
N/A |
| 3 |
VDB06 (GY-OG) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH |
9U5T-14474-DB |
| 4 |
VDB49 (YE-OG) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED FD HIGH |
9U5T-14474-DB |
| 5 |
VDB33 (WH-BN) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED DIAG 1 HIGH |
9U5T-14474-DB |
| 6 |
VDB35 (BU-WH) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED DIAG 2 HIGH |
9U5T-14474-DB |
| 7 |
VDB04 (BU) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH |
9U5T-14474-DB |
| 8 |
VDB25 (GN-OG) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH |
9U5T-14474-DB |
| 9 |
VDB29 (GN-BU) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH |
9U5T-14474-DB |
| 10 |
VDB31 (BU-GN) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 4 HIGH |
9U5T-14474-DB |
| 11 |
VDB27 (VT-GN) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED 2 HIGH |
9U5T-14474-DB |
| 12 |
* |
* |
Not Used |
N/A |
| 13 |
SBP12 (GN-RD) |
20 |
FUSE - 12 OR CIRCUIT BREAKER |
9U5T-14474-DB |
| 14 |
GD215 (BK-GY) |
20 |
GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT |
9U5T-14474-DB |
| 15 |
* |
* |
Not Used |
N/A |
| 16 |
VDB07 (VT-OG) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW |
9U5T-14474-DB |
| 17 |
VDB50 (BU-OG) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED FD LOW |
9U5T-14474-DB |
| 18 |
VDB34 (GY-YE) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED DIAG 1 LOW |
9U5T-14474-DB |
| 19 |
VDB36 (BN-YE) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED DIAG 2 |
9U5T-14474-DB |
| 20 |
VDB05 (WH) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW |
9U5T-14474-DB |
| 21 |
VDB26 (GY-BU) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW |
9U5T-14474-DB |
| 22 |
VDB30 (WH-GN) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW |
9U5T-14474-DB |
| 23 |
VDB32 (VT-WH) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 4 LOW |
9U5T-14474-DB |
| 24 |
VDB28 (GY-VT) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED 2 LOW |
9U5T-14474-DB |
| 25 |
* |
* |
Not Used |
N/A |
| 26 |
* |
* |
Not Used |
N/A |
