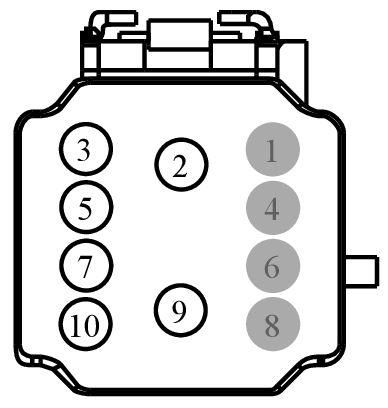

Connector End View (C2391A) - STEERING EFFORT CONTROL MODULE (SECM)
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C2391A |
STEERING EFFORT CONTROL MODULE (SECM) |
BK |
PIA |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
* |
* |
Not Used |
N/A |
| 2 |
KL30 (*) |
* |
POWER |
N/A |
| 3 |
KL30X (*) |
* |
SWITCHED POWER |
N/A |
| 4 |
* |
* |
Not Used |
N/A |
| 5 |
GUARD (*) |
.* |
GUARD TRACK |
N/A |
| 6 |
* |
* |
Not Used |
N/A |
| 7 |
CAN L (*) |
* |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW |
N/A |
| 8 |
* |
* |
Not Used |
N/A |
| 9 |
KL31 (*) |
* |
GROUND |
N/A |
| 10 |
CAN H (*) |
* |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH |
N/A |
