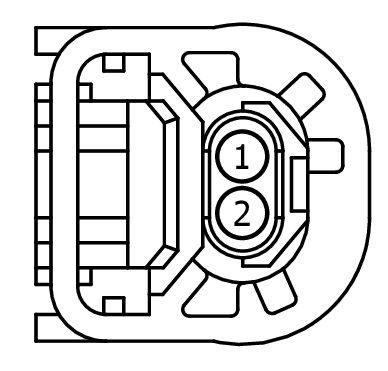

Connector End View (C2383F) - SYNC MODULE [APIM]
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C2383F |
SYNC MODULE [APIM] |
VT |
14401 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
VDB43 (WH-BU) |
26 |
CONNECTOR - DIAGNOSTIC # ECG/APIM ETHERNET + |
N/A |
| 2 |
VDB44 (WH-VT) |
26 |
CONNECTOR - DIAGNOSTIC # ECG/APIM ETHERNET - |
N/A |
