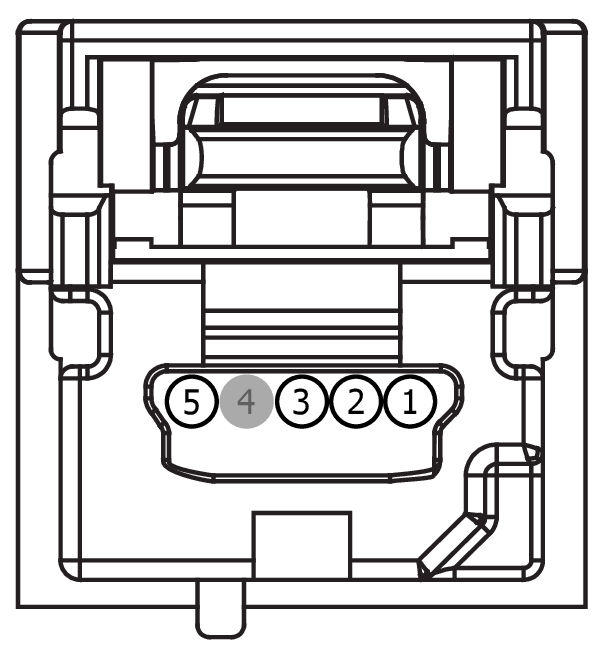

Connector End View (C2383B) - SYNC MODULE [APIM]
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C2383B |
SYNC MODULE [APIM] |
PIA |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
* (*) |
* |
USB POWER |
N/A |
| 2 |
* (*) |
* |
USB DATA - |
N/A |
| 3 |
* (*) |
* |
USB DATA + |
N/A |
| 4 |
* |
* |
Not Used |
N/A |
| 5 |
* (*) |
* |
USB GND |
N/A |
