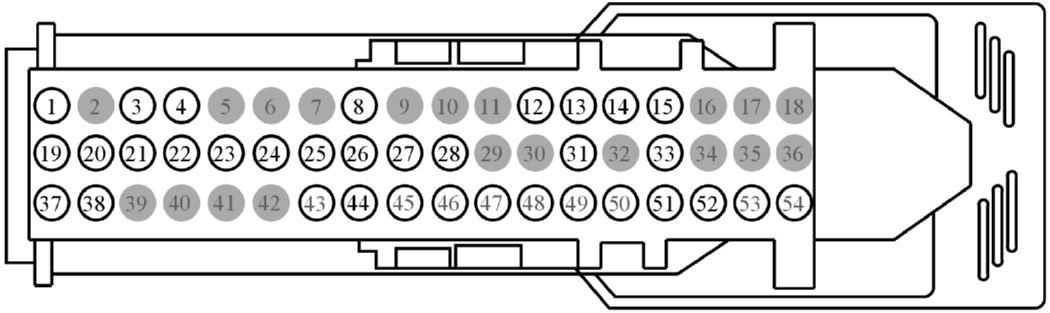

Connector End View (C2383A) - SYNC MODULE [APIM]
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C2383A |
SYNC MODULE [APIM] |
BK |
14401 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
| 9U5T-14474-DB |
DU2Z-14474-AA |
0.64 |
| 9U5T-14474-EB |
DU2Z-14474-AA |
0.64 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
SBP15 (WH-RD) |
20 |
FUSE - 15 OR CIRCUIT BREAKER |
9U5T-14474-DB |
| 2 |
* |
* |
Not Used |
N/A |
| 3 |
VME80 (VT-GN) |
22 |
CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 (+) |
9U5T-14474-DB |
| 4 |
RME80 (BU-GY) |
22 |
CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 (-) |
9U5T-14474-DB |
| 5 |
* |
* |
Not Used |
N/A |
| 6 |
* |
* |
Not Used |
N/A |
| 7 |
* |
* |
Not Used |
N/A |
| 8 |
LME89 (YE-BU) |
22 |
CTRL MOD. - MEDIA CONNECTIVITY POWER |
9U5T-14474-DB |
| 9 |
* |
* |
Not Used |
N/A |
| 10 |
* |
* |
Not Used |
N/A |
| 11 |
* |
* |
Not Used |
N/A |
| 12 |
VMM13 (YE-GN) |
22 |
MICROPHONE - PHONE/VOICE CONTROL + |
9U5T-14474-DB |
| 13 |
RMM13 (BU) |
22 |
MICROPHONE - PHONE/VOICE CONTROL - |
9U5T-14474-DB |
| 14 |
VMP19 (WH-GN) |
22 |
CAMERA - PARKING AID REAR VIDEO + |
9U5T-14474-DB |
| 15 |
RMP19 (BU-GY) |
22 |
CAMERA - PARKING AID REAR VIDEO - |
9U5T-14474-DB |
| 16 |
* |
* |
Not Used |
N/A |
| 17 |
* |
* |
Not Used |
N/A |
| 18 |
* |
* |
Not Used |
N/A |
| 19 |
VDB29 (GN-BU) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH |
9U5T-14474-EB |
| 20 |
VDB30 (WH-GN) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW |
9U5T-14474-EB |
| 21 |
DME80 (*) |
20 |
CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 D |
9U5T-14474-DB |
| 22 |
DME52 (*) |
20 |
CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] D |
9U5T-14474-DB |
| 23 |
VME52 (BU) |
22 |
CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] LEFT + |
9U5T-14474-DB |
| 24 |
RME52 (GY-OG) |
22 |
CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] LEFT - |
9U5T-14474-DB |
| 25 |
VME53 (VT-GN) |
22 |
CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] RIGHT + |
9U5T-14474-DB |
| 26 |
RME53 (BN-WH) |
22 |
CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] RIGHT - |
9U5T-14474-DB |
| 27 |
VMEG1 (GY-VT) |
22 |
CTRL MOD. - BLUETOOTH MOD DATA LINK + |
9U5T-14474-DB |
| 28 |
VMEG2 (YE-OG) |
22 |
CTRL MOD. - BLUETOOTH MOD DATA LINK - |
9U5T-14474-DB |
| 29 |
* |
* |
Not Used |
N/A |
| 30 |
* |
* |
Not Used |
N/A |
| 31 |
DMM13 (*) |
20 |
MICROPHONE - PHONE/VOICE CONTROL D |
9U5T-14474-DB |
| 32 |
* |
* |
Not Used |
N/A |
| 33 |
DMP19 (*) |
20 |
CAMERA - PARKING AID REAR VIDEO D |
9U5T-14474-DB |
| 34 |
* |
* |
Not Used |
N/A |
| 35 |
* |
* |
Not Used |
N/A |
| 36 |
* |
* |
Not Used |
N/A |
| 37 |
GD215 (BK-GY) |
20 |
GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT |
9U5T-14474-DB |
| 38 |
RME89 (WH-BU) |
22 |
CTRL MOD. - MEDIA CONNECTIVITY GROUND |
9U5T-14474-DB |
| 39 |
* |
* |
Not Used |
N/A |
| 40 |
* |
* |
Not Used |
N/A |
| 41 |
* |
* |
Not Used |
N/A |
| 42 |
* |
* |
Not Used |
N/A |
| 43 |
* |
* |
Not Used |
N/A |
| 44 |
VMC49 (VT-GY) |
22 |
CTRL MOD. - INTEGRATED CONTROL PANEL LIN BUS |
9U5T-14474-DB |
| 45 |
* |
* |
Not Used |
N/A |
| 46 |
* |
* |
Not Used |
N/A |
| 47 |
* |
* |
Not Used |
N/A |
| 48 |
* |
* |
Not Used |
N/A |
| 49 |
* |
* |
Not Used |
N/A |
| 50 |
* |
* |
Not Used |
N/A |
| 51 |
VMEF7 (GY-BU) |
22 |
CTRL MOD. - SATELLITE DIGITAL RADIO DATA LINK + |
9U5T-14474-DB |
| 52 |
VMEF8 (WH-BN) |
22 |
CTRL MOD. - SATELLITE DIGITAL RADIO DATA LINK - |
9U5T-14474-DB |
| 53 |
* |
* |
Not Used |
N/A |
| 54 |
* |
* |
Not Used |
N/A |
