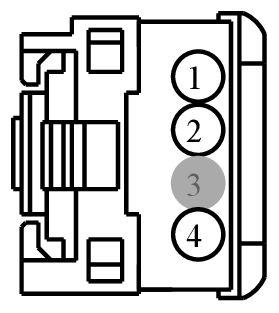

Connector End View (C2292A) - ALTERNATING CURRENT (AC) POWER OUTLET SOCKET (I/P)
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C2292A |
ALTERNATING CURRENT (AC) POWER OUTLET SOCKET (I/P) |
BK |
14401 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
| 9U5T-14474-DB |
DU2Z-14474-AA |
0.64 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
CBP02 (GN) |
20 |
FUSE - 2 / 35 OR CIRCUIT BREAKER |
9U5T-14474-DB |
| 2 |
VYA21 (GY-BN) |
22 |
CTRL MOD. - DC/AC INVERTER # LIN |
9U5T-14474-DB |
| 3 |
* |
* |
Not Used |
N/A |
| 4 |
RYA21 (BN) |
22 |
CTRL MOD. - DC/AC INVERTER # LED INDICATOR - |
9U5T-14474-DB |
