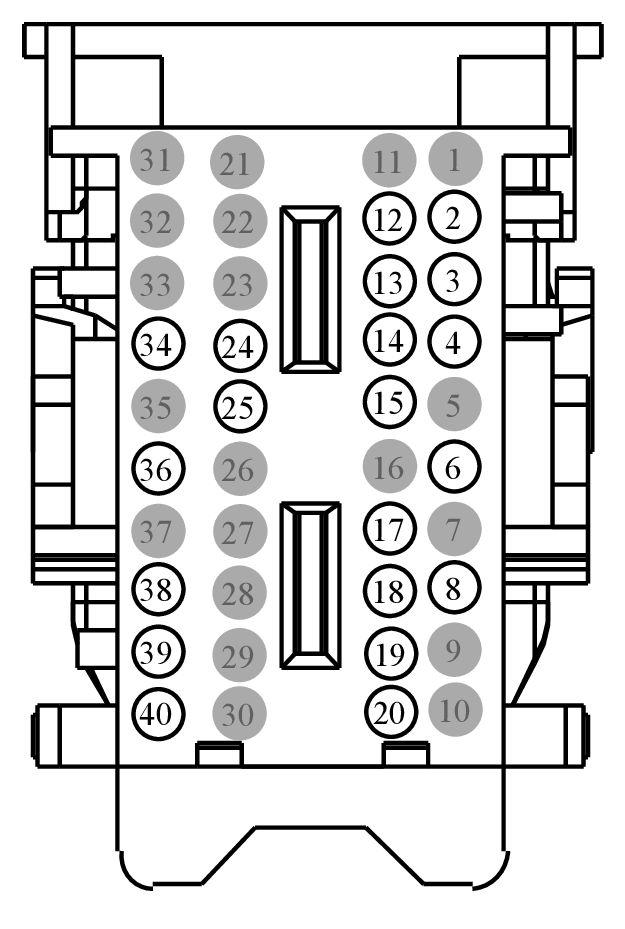

Connector End View (C2280F) - BODY CONTROL MODULE (BCM)
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C2280F |
BODY CONTROL MODULE (BCM) |
BK |
12A581 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
| 9U5T-14474-DB |
DU2Z-14474-AA |
0.64 |
| 9U5T-14474-EB |
DU2Z-14474-AA |
0.64 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
* |
* |
Not Used |
N/A |
| 2 |
CLS18 (GY-BN) |
22 |
CTRL MOD. - STOP/TURN LEFT (INBOARD) |
9U5T-14474-DB |
| 3 |
LDC59 (BU-WH) |
22 |
CTRL MOD. - BATTERY MONITORING SYSTEM SENSOR + |
9U5T-14474-DB |
| 4 |
VDN03 (GY-VT) |
20 |
CTRL MOD. - LIN BUS # 3 |
9U5T-14474-DB |
| 5 |
* |
* |
Not Used |
N/A |
| 6 |
CLS56 (YE-GN) |
22 |
LAMP - TURN FRONT LEFT OR COMMON# SIGNAL OUT |
9U5T-14474-DB |
| 7 |
* |
* |
Not Used |
N/A |
| 8 |
SDC57 (BU-OG) |
22 |
CTRL MOD. - BATTERY MONITORING SYSTEM MONITOR |
9U5T-14474-DB |
| 9 |
* |
* |
Not Used |
N/A |
| 10 |
* |
* |
Not Used |
N/A |
| 11 |
* |
* |
Not Used |
N/A |
| 12 |
CAT17 (BN) |
22 |
RELAY - TRAILER TOW PARK LAMPS |
9U5T-14474-DB |
| 13 |
CLS19 (VT-OG) |
22 |
CTRL MOD. - STOP/TURN RIGHT (INBOARD) |
9U5T-14474-DB |
| 14 |
CPL25 (BU-OG) |
20 |
SWITCH - HOOD # AJAR |
9U5T-14474-DB |
| 15 |
VDN14 (YE-VT) |
22 |
CTRL MOD. - LIN BUS # 14 |
9U5T-14474-DB |
| 16 |
* |
* |
Not Used |
N/A |
| 17 |
CLS58 (BU-WH) |
22 |
LAMP - TURN FRONT RIGHT # SIGNAL OUT |
9U5T-14474-DB |
| 18 |
CE436 (VT-OG) |
22 |
CTRL MOD. -WAKE UP PCM |
9U5T-14474-DB |
| 19 |
RDC59 (GY-BN) |
22 |
CTRL MOD. - BATTERY MONITORING SYSTEM SENSOR - |
9U5T-14474-DB |
| 20 |
CRH04 (VT-GN) |
22 |
CTRL MOD. - RELAY HORN |
9U5T-14474-DB |
| 21 |
* |
* |
Not Used |
N/A |
| 22 |
* |
* |
Not Used |
N/A |
| 23 |
* |
* |
Not Used |
N/A |
| 24 |
CDC64 (WH-BU) |
22 |
RELAY - RUN; ACCESSORY |
9U5T-14474-DB |
| 25 |
CDC55 (BN-VT) |
22 |
RELAY - RUN; START |
9U5T-14474-DB |
| 26 |
* |
* |
Not Used |
N/A |
| 27 |
* |
* |
Not Used |
N/A |
| 28 |
* |
* |
Not Used |
N/A |
| 29 |
* |
* |
Not Used |
N/A |
| 30 |
* |
* |
Not Used |
N/A |
| 31 |
* |
* |
Not Used |
N/A |
| 32 |
* |
* |
Not Used |
N/A |
| 33 |
* |
* |
Not Used |
N/A |
| 34 |
CDC65 (GN-BU) |
18 |
RELAY - LOAD MANAGEMENT (LOAD SHED) |
9U5T-14474-EB |
| 35 |
* |
* |
Not Used |
N/A |
| 36 |
CLF62 (VT) |
18 |
CTRL MOD. - DAYTIME RUNNING LIGHT RIGHT |
9U5T-14474-EB |
| 37 |
* |
* |
Not Used |
N/A |
| 38 |
CLS25 (YE-VT) |
22 |
CTRL MOD. - TURN LAMP RIGHT FRONT |
9U5T-14474-DB |
| 38 |
CLS25 (YE-VT) |
20 |
CTRL MOD. - TURN LAMP RIGHT FRONT |
9U5T-14474-DB |
| 39 |
CLS21 (BU-GN) |
22 |
CTRL MOD. - TURN LAMP LEFT FRONT |
9U5T-14474-DB|9U5T-14474-EB |
| 39 |
CLS21 (BU-GN) |
18 |
CTRL MOD. - TURN LAMP LEFT FRONT |
9U5T-14474-DB|9U5T-14474-EB |
| 40 |
CLF61 (GY) |
18 |
CTRL MOD. - DAYTIME RUNNING LIGHT LEFT |
9U5T-14474-EB |
