Connector End View (C2280C) - BODY CONTROL MODULE (BCM)

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector: Description Color Harness Base Part # Service Pigtail
C2280C BODY CONTROL MODULE (BCM) BK 14A005 part# N/A Not Available

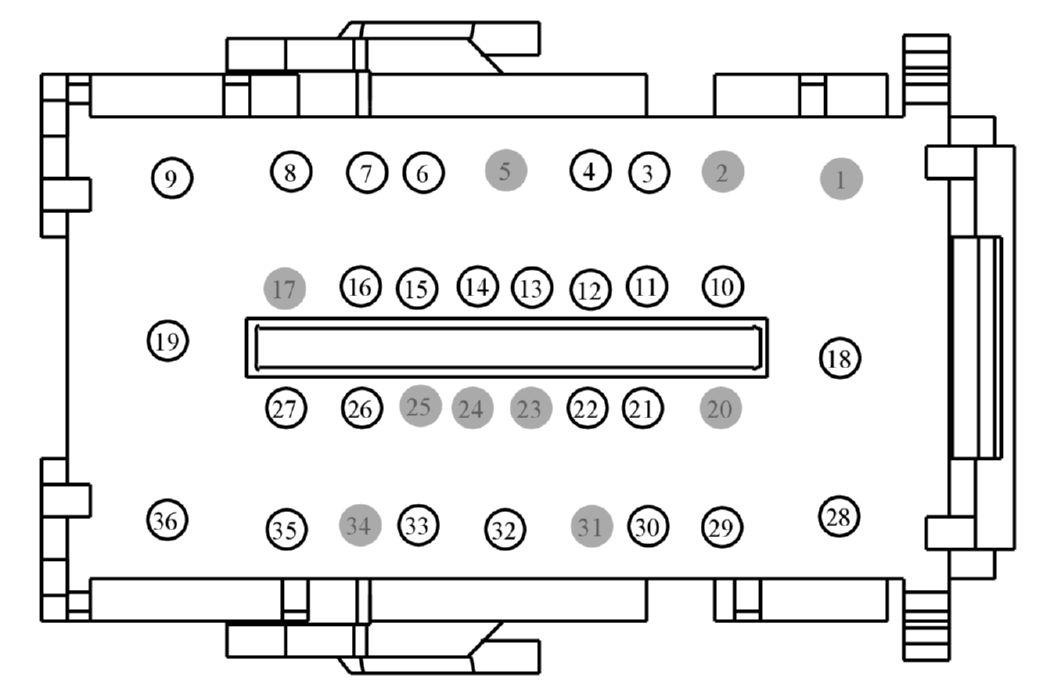

GFDWR124459Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
BU5T-14474-UA DU2Z-14474-DA 1.50
DU5T-14474-JBB EU2Z-14474-AB 2.80
DU5T-14474-PBB KU2Z-14474-DA 6.30
DU5T-14474-LBB EU2Z-14474-AB 2.80
DU5T-14474-HBB EU2Z-14474-AB 2.80
DU5T-14474-UBB KU2Z-14474-DA 6.30
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 * * Not Used N/A
2 * * Not Used N/A
3 SBP07 (WH-RD) 20 FUSE - 7 OR CIRCUIT BREAKER BU5T-14474-UA
4 CBX07 (GN-RD) 22 POWER - CTRL MOD. AMBIENT LIGHTING BU5T-14474-UA
5 * * Not Used N/A
6 GD238 (BK-WH) 20 GROUND - COWL SIDE/PILLAR A RIGHT BU5T-14474-UA
7 GD238 (BK-WH) 20 GROUND - COWL SIDE/PILLAR A RIGHT BU5T-14474-UA
8 CBP36 (BU-BN) 18 FUSE - 36 OR CIRCUIT BREAKER DU5T-14474-JBB|DU5T-14474-HBB
8 CBP36 (BU-BN) 20 FUSE - 36 OR CIRCUIT BREAKER DU5T-14474-JBB|DU5T-14474-HBB
8 CBP36 (BU-BN) 22 FUSE - 36 OR CIRCUIT BREAKER DU5T-14474-JBB|DU5T-14474-HBB
9 SBP28 (GN-RD) 10 FUSE - 28 OR CIRCUIT BREAKER DU5T-14474-UBB
10 GD238 (BK-WH) 16 GROUND - COWL SIDE/PILLAR A RIGHT DU5T-14474-JBB
11 CLS10 (GN-BN) 22 CTRL MOD. - REVERSE LEFT OR COMMON AU5T-14474-CA
11 CLS10 (GN-BN) 18 CTRL MOD. - REVERSE LEFT OR COMMON AU5T-14474-CA
12 CLS05 (BU-GY) 22 CTRL MOD. - PARK BU5T-14474-UA
13 VLN33 (GY-VT) 22 CTRL MOD. - INTERIOR/COURTESY LAMP DIMMING (THEATRE) BU5T-14474-UA
14 CLN09 (YE-GN) 22 RELAY - BATTERY SAVER (E.G. SWITCH OFF INTERIOR LIGHTING) 7C3T-14474-DA
15 SBP11 (BU-RD) 22 FUSE - 9 OR CIRCUIT BREAKER BU5T-14474-UA
16 SBP10 (YE-RD) 22 FUSE - 8 OR CIRCUIT BREAKER BU5T-14474-UA
17 * * Not Used N/A
18 SBP26 (YE-RD) 10 FUSE - 26 OR CIRCUIT BREAKER DU5T-14474-UBB
19 SBP27 (BU-RD) 16 FUSE - 24 OR CIRCUIT BREAKER DU5T-14474-PBB
20 * * Not Used N/A
21 SBP06 (BN-RD) 22 FUSE - 6 OR CIRCUIT BREAKER BU5T-14474-UA
22 SBP31 (WH-RD) 22 FUSE - 31 OR CIRCUIT BREAKER BU5T-14474-UA
23 * * Not Used N/A
24 * * Not Used N/A
25 * * Not Used N/A
26 CLN25 (WH-GN) 22 RELAY - PUDDLE LAMPS (KERB ILLUM.) 7C3T-14474-DA|BU5T-14474-UA
27 CPL51 (BU-GN) 18 CTRL MOD. - DOOR LOCK # DRIVER UNLOCK DU5T-14474-JBB
28 SBP23 (WH-RD) 10 FUSE - 23 OR CIRCUIT BREAKER DU5T-14474-UBB
29 SBP03 (BU-RD) 22 FUSE - 3 OR CIRCUIT BREAKER DU5T-14474-HBB
30 CBP02 (GN) 22 FUSE - 2 OR CIRCUIT BREAKER BU5T-14474-UA
31 * * Not Used N/A
32 CPL13 (BN-GN) 18 CTRL MOD. - DOOR LOCK # ALL UNLOCK DU5T-14474-JBB
32 CPL13 (BN-GN) 16 CTRL MOD. - DOOR LOCK # ALL UNLOCK DU5T-14474-JBB
33 CPL10 (GN-WH) 22 CTRL MOD. - DOOR LOCK # LIFTGATE/DECKLID RELEASE BU5T-14474-UA
34 * * Not Used N/A
35 CPL11 (GY-BN) 20 CTRL MOD. - DOOR LOCK # ALL LOCK DU5T-14474-LBB|DU5T-14474-JBB
35 CPL11 (GY-BN) 18 CTRL MOD. - DOOR LOCK # ALL LOCK DU5T-14474-LBB|DU5T-14474-JBB
35 CPL11 (GY-BN) 16 CTRL MOD. - DOOR LOCK # ALL LOCK DU5T-14474-LBB|DU5T-14474-JBB
36 CBP38 (GY-BU) 14 FUSE - 38 OR CIRCUIT BREAKER DU5T-14474-UBB
