Connector End View (C2237) - INLINE
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C2237 |
INLINE |
LT BU |
14H00714401 |
Not Available |

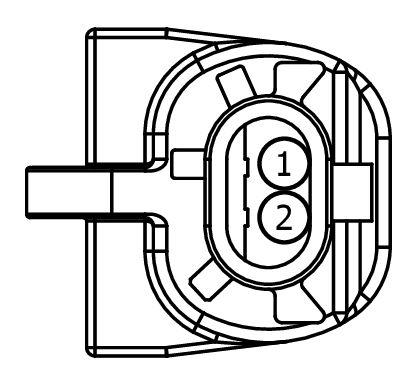

MALE
Harness
14H007

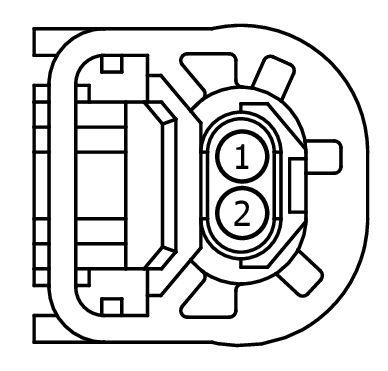

FEMALE
Harness
14401
 Courtesy of FORD MOTOR COMPANY
|
 Courtesy of FORD MOTOR COMPANY
|
| Pin |
Circuit |
Gauge |
Qualifier |
Terminal Part Number |
| 1 |
VDB45 (BN-WH) |
26 |
N/A |
| Pin |
Circuit |
Gauge |
Qualifier |
Terminal Part Number |
| 1 |
VDB45 (BN-WH) |
26 |
N/A |
