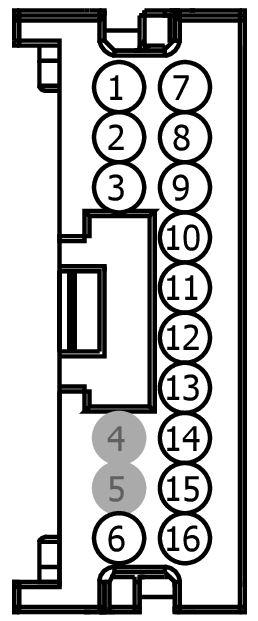

Connector End View (C2129) - HEADLAMP CONTROL MODULE (HCM)

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2129	HEADLAMP CONTROL MODULE (HCM)	BK	14401	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
DU5T-14474-BA	LU2Z-14474-AA	0.50
GU5T-14474-KA	LU2Z-14474-AA	0.50

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VLF32 (YE)	22	CTRL MOD. - MOTOR DYNAMIC BENDING LIGHT LEFT (LIN BUS) +	DU5T-14474-BA
2	VDB25 (GN-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH	DU5T-14474-BA
3	VDB26 (GY-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW	DU5T-14474-BA
4	*	*	Not Used	N/A
5	*	*	Not Used	N/A
6	VLF33 (BU)	22	CTRL MOD. - MOTOR DYNAMIC BENDING LIGHT RIGHT (LIN BUS) +	DU5T-14474-BA
7	DLF32 (*)	22	CTRL MOD. - MOTOR DYNAMIC BENDING LIGHT LEFT (LIN BUS) D	GU5T-14474-KA
8	LLF16 (WH-GN)	22	CTRL MOD. - SENSOR HEADLAMP LEVELING REAR +	DU5T-14474-BA
9	LLF15 (WH-GN)	22	CTRL MOD. - SENSOR HEADLAMP LEVELING FRONT +	DU5T-14474-BA
10	CBP17 (BN-GN)	22	FUSE - 17 OR CIRCUIT BREAKER	DU5T-14474-BA
11	VLF16 (WH-BN)	22	SENSOR - HEADLAMP LEVELING REAR	DU5T-14474-BA
12	VLF15 (GN)	22	SENSOR - HEADLAMP LEVELING FRONT	DU5T-14474-BA
13	GD214 (BK-BU)	22	GROUND - INSTRUMENT PANEL STRUCTURE	DU5T-14474-BA
14	RLF16 (VT-OG)	22	CTRL MOD. - SENSOR HEADLAMP LEVELING REAR -	DU5T-14474-BA
15	RLF15 (GN-BU)	22	CTRL MOD. - SENSOR HEADLAMP LEVELING FRONT -	DU5T-14474-BA
16	DLF33 (*)	22	CTRL MOD. - MOTOR DYNAMIC BENDING LIGHT RIGHT (LIN BUS) D	GU5T-14474-KA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1643

Service Part Number:

LU2Z-14S411-UA

Gauge:

Pin material:

Tin (greased)

Cavities:

Vehicle Uses:

Lamp - Dome/Map
Switch - Seat (driver)
Switch - Seat (passenger)
Switch - Seat Passenger Side (2nd Row)
