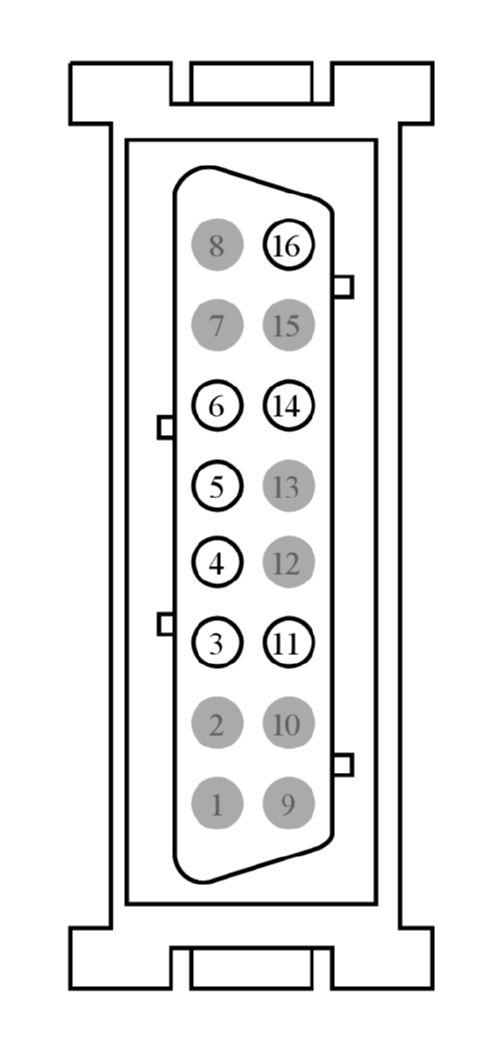

Connector End View (C2122) - REMOTE DATA LINK CONNECTOR (DLC)

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2122	REMOTE DATA LINK CONNECTOR (DLC)	WH	14401	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used	N/A
2	*	*	Not Used	N/A
3	VDB35 (BU-WH)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED DIAG 2 HIGH	1X4T-14474-BA
4	GD215 (BK-GY)	22	GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT	1X4T-14474-BA
5	GD216 (BK-VT)	22	GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT	1X4T-14474-BA
6	VDB33 (WH-BN)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED DIAG 1 HIGH	1X4T-14474-BA
7	*	*	Not Used	N/A
8	*	*	Not Used	N/A
9	*	*	Not Used	N/A
10	*	*	Not Used	N/A
11	VDB36 (BN-YE)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED DIAG 2	1X4T-14474-BA
12	*	*	Not Used	N/A
13	*	*	Not Used	N/A
14	VDB34 (GY-YE)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED DIAG 1 LOW	1X4T-14474-BA
15	*	*	Not Used	N/A
16	SBBG0 (VT-RD)	22	FUSE - 160 OR CIRCUIT BREAKER	1X4T-14474-BA

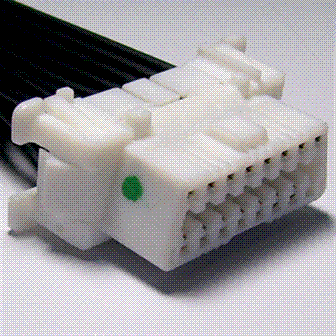

Available Pigtail Kits

Pigtail Kit Part Number WPT-1380

Courtesy of FORD MOTOR COMPANY

Service Part Number:

DU2Z-14S411-ASA

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses:

Test Connector - Diagnostic
