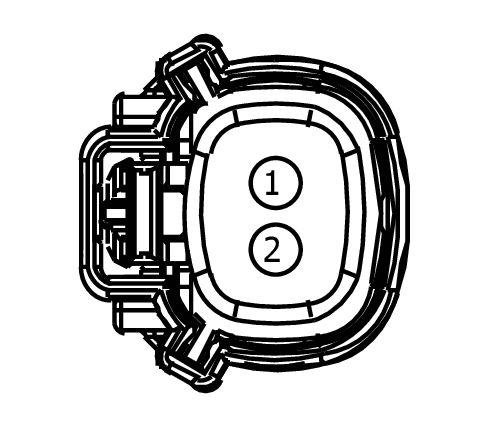

Connector End View (C1999) - FRONT INNER FOG LAMP RH

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1999	FRONT INNER FOG LAMP RH	BK	15K867	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
BU5T-14474-UA	DU2Z-14474-DA	1.50

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CLS12 (BN-YE)	20	CTRL MOD. - SIDE MARKER	BU5T-14474-UA
2	GD131 (BK-GY)	20	GROUND - HEADLAMP PANEL/GOR RIGHT	BU5T-14474-UA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1631

Service Part Number:

EU2Z-14S411-MB

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Lamp - Fog/Driving
Motor - Electric Water Pump
Motor - Long Travel
Pump - Fuel Injection
Solenoid - Fuel Volume Regulator Control
Valve - Fuel Metering
Valve - Vacuum On Demand Auto Shutoff
