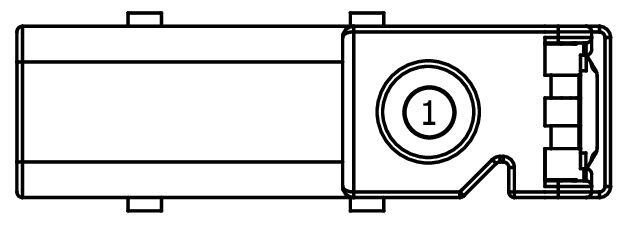

Connector End View (C1989B) - AUXILIARY BATTERY ISOLATOR
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C1989B |
AUXILIARY BATTERY ISOLATOR |
BK |
14301 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
SDC02 (RD) |
4 |
BATTERY - # PLUS |
MU5T-14487-CA |
