Connector End View (C1912) - INLINE
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C1912 |
INLINE |
BK |
14B06012A581 |
Not Available |

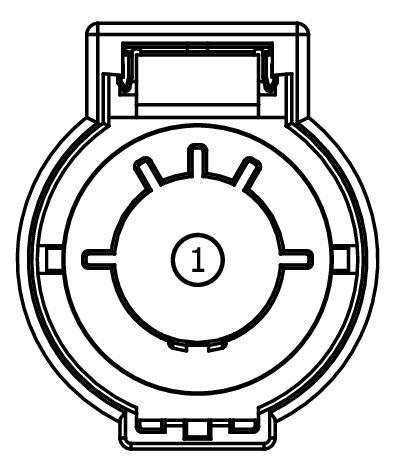

MALE
Harness
14B060

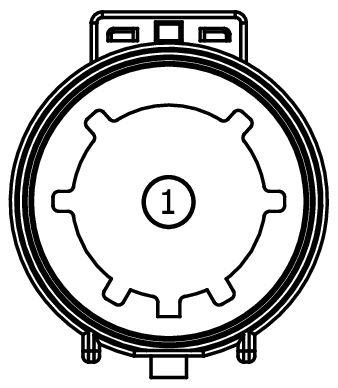

FEMALE
Harness
12A581
 Courtesy of FORD MOTOR COMPANY
|
 Courtesy of FORD MOTOR COMPANY
|
| Pin |
Circuit |
Gauge |
Qualifier |
Terminal Part Number |
| 1 |
SB212 (GN-RD) |
4 |
| Pin |
Circuit |
Gauge |
Qualifier |
Terminal Part Number |
| 1 |
SB212 (GN-RD) |
4 |
