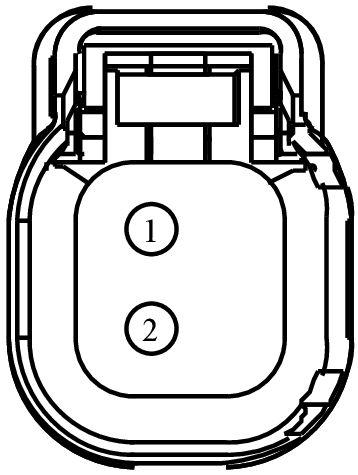

Connector End View (C1902) - FUEL INJECTOR 2B

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1902	FUEL INJECTOR 2B	BK	14B485	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
7C3T-14474-SA	LU2Z-14474-CA	1.50

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CE263 (BU-GN)	18	CTRL MOD. - POWERTRAIN # FUEL INJECTOR CONTROL FEED 2	7C3T-14474-SA
2	CBK01 (BU)	18	FUSE - 4 OR CIRCUIT BREAKER	7C3T-14474-SA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1051

Courtesy of FORD MOTOR COMPANY

Service Part Number:

5U2Z-14S411-ZB

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Fuel Injector
Horn
Switch - Backup Lamp
Switch - Hood Ajar
