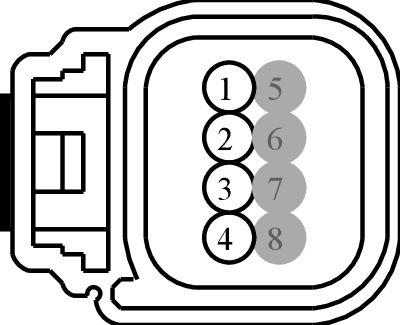

Connector End View (C1897) - CRUISE CONTROL MODULE (CCM)
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C1897 | CRUISE CONTROL MODULE (CCM) | BK | 15K867 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 3F2T-14474-SA | DU2Z-14474-BA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CMF14 (GY-OG) | 22 | CTRL MOD. - FRONT RADAR POWER | 3F2T-14474-SA | ||||
| 2 | VMF05 (GY-BU) | 22 | CTRL MOD. - FORWARD SENSING # FORWARD LOOKING RADAR CAN BUS LOW | 3F2T-14474-SA | ||||
| 3 | VMF04 (BN-BU) | 22 | CTRL MOD. - FORWARD SENSING # FORWARD LOOKING RADAR CAN BUS HIGH | 3F2T-14474-SA | ||||
| 4 | RMF14 (GN-WH) | 22 | CTRL MOD. - FRONT RADAR GROUND | 3F2T-14474-SA | ||||
| 5 | * | * | Not Used | N/A | ||||
| 6 | * | * | Not Used | N/A | ||||
| 7 | * | * | Not Used | N/A | ||||
| 8 | * | * | Not Used | N/A | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1198
Service Part Number:
4U2Z-14S411-LC
Gauge:
18
Pin material:
Silver
Cavities:
8
Vehicle Uses:
- Module - Remote Keyless Entry
- Switch - Keyless Entry
