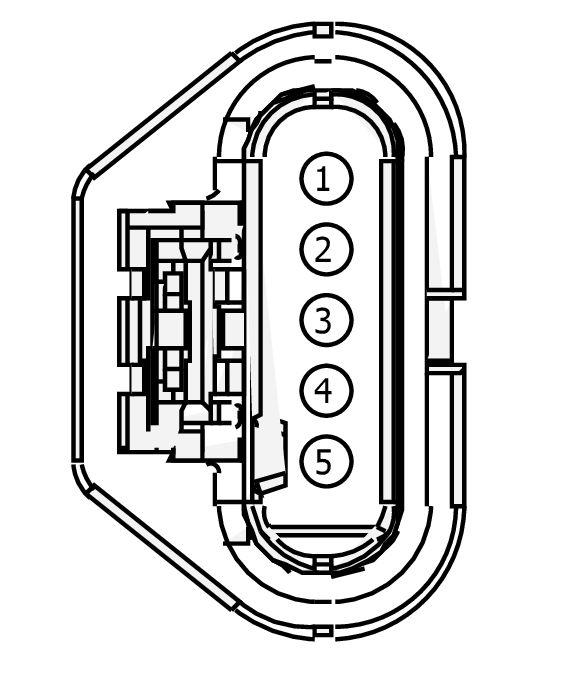

Connector End View (C1896) - TURBOCHARGER WASTEGATE MOTOR 2
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C1896 | TURBOCHARGER WASTEGATE MOTOR 2 | BK | 12C508 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| EU5T-14474-GAB | KU2Z-14474-CA | 1.20 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CE466 (BU-BN) | 18 | CTRL MOD. - POWERTRAIN # SUPERCHARGER BYPASS ACTUATOR MOTOR + | EU5T-14474-GAB | ||||
| 2 | RE466 (GN-BN) | 18 | CTRL MOD. - POWERTRAIN # SUPERCHARGER BYPASS ACTUATOR MOTOR - | EU5T-14474-GAB | ||||
| 3 | LE424 (YE-GN) | 18 | CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE COWL (VREF) | EU5T-14474-GAB | ||||
| 4 | VE836 (VT-GN) | 18 | SENSOR - WASTEGATE POSITION (WGT_PS) | EU5T-14474-GAB | ||||
| 5 | RE407 (YE-VT) | 18 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (SIGRTN) | EU5T-14474-GAB | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1504
Service Part Number:
HU2Z-14S411-LA
Gauge:
18
Pin material:
Silver
Cavities:
5
Vehicle Uses:
- Actuator - Turbocharger Waste Gate
- Module - NOX Sensor
- Solenoid - EGR Cooler Bypass
- Valve - EGR
