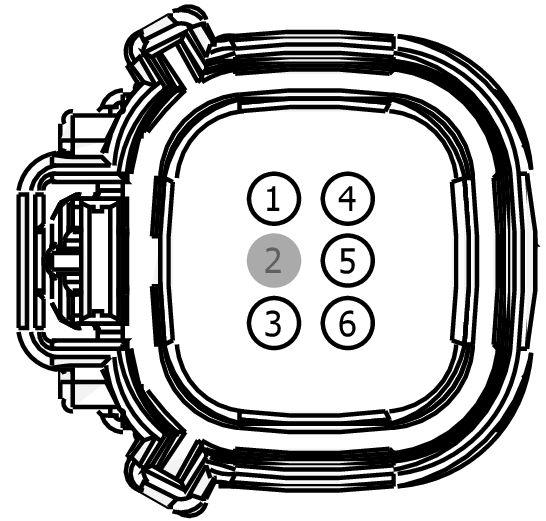

Connector End View (C1792) - TRANSMISSION FLUID AUXILIARY PUMP
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C1792 |
TRANSMISSION FLUID AUXILIARY PUMP |
NA |
7G276 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
| 7C3T-14474-EA |
DU2Z-14474-DA |
1.50 |
| 7C3T-14474-CA |
DU2Z-14474-DA |
1.50 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
RUN START (GN-VT) |
14 |
POWER FEED |
7C3T-14474-EA |
| 2 |
* |
* |
Not Used |
N/A |
| 3 |
TASV (YE-OG) |
20 |
CTRL MOD. - POWERTRAIN # TRANSMISSION ACTUATOR SUPPLY VOLTAGE (TASV) |
7C3T-14474-CA |
| 4 |
ATFPC (GY-OG) |
20 |
CTRL MOD. - POWERTRAIN # AUTOMATIC TRANSMISSION FLUID PUMP CONTROL |
7C3T-14474-CA |
| 5 |
ATFPM (VT) |
20 |
CTRL MOD. - POWERTRAIN # AUTOMATIC TRANSMISSION FLUID PUMP MONITOR |
7C3T-14474-CA |
| 6 |
PWR GND (BK-YE) |
14 |
GROUND |
7C3T-14474-EA |
