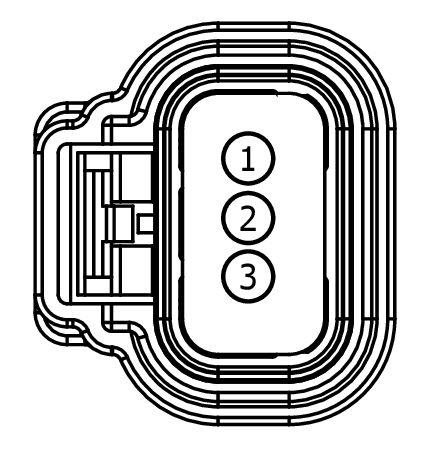

Connector End View (C1728) - CRANKSHAFT POSITION (CKP) SENSOR
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C1728 |
CRANKSHAFT POSITION (CKP) SENSOR |
BK |
12C508 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
| 97BG-14474-AHA |
LU2Z-14474-CA |
1.50 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
LE459 (GY) |
20 |
CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE 3 (VREF3) |
97BG-14474-AHA |
| 2 |
VE711 (YE-VT) |
20 |
SENSOR - CRANKSHAFT POSITION (CKPP) + |
97BG-14474-AHA |
| 3 |
RE135 (GN-BN) |
20 |
CTRL MOD. - POWERTRAIN # CRANKSHAFT POSITION SENSOR (CKPN) - |
97BG-14474-AHA |
