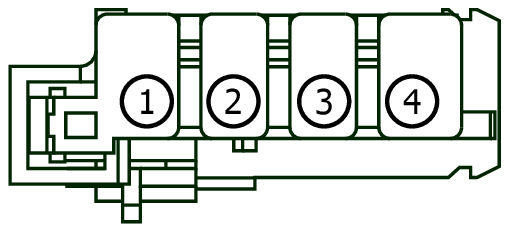

Connector End View (C1717) - TRANSMISSION FLUID AUXILIARY PUMP
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C1717 |
TRANSMISSION FLUID AUXILIARY PUMP |
NA |
7G276 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
| 6W8T-14474-WA |
EU2Z-14474-BA |
1.20 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
RUN START (GN-VT) |
18 |
POWER FEED |
6W8T-14474-WA |
| 2 |
TASV (YE-OG) |
20 |
CTRL MOD. - POWERTRAIN # TRANSMISSION ACTUATOR SUPPLY VOLTAGE (TASV) |
6W8T-14474-WA |
| 3 |
LIN (WH-GN) |
20 |
CTRL MOD. - LIN |
6W8T-14474-WA |
| 4 |
PWR GND (BK-YE) |
18 |
GROUND |
6W8T-14474-WA |
