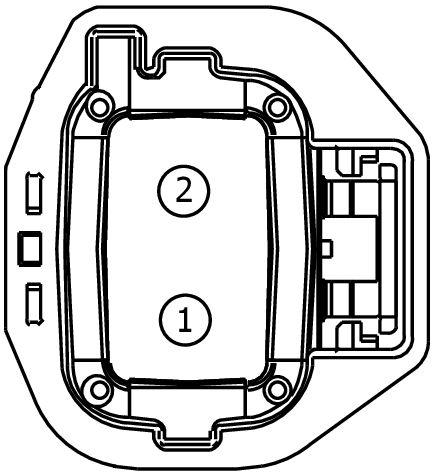

Connector End View (C1679) - CHARGE AIR COOLER (CAC) COOLING FAN MOTOR 1
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C1679 | CHARGE AIR COOLER (CAC) COOLING FAN MOTOR 1 | DK GY | 8C290 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14474-CEA | KU2Z-14474-AA | 6.30 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CE632 (GY-BU) | 14 | RELAY - CHARGE AIR COOLING FAN | 97BG-14474-CEA | ||||
| 2 | GD131 (BK-GY) | 14 | GROUND - HEADLAMP PANEL/GOR RIGHT | 97BG-14474-CEA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1417
Service Part Number:
3U2Z-14S411-EUAB
Gauge:
14
Pin material:
Silver
Cavities:
2
Vehicle Uses:
- Motor - Engine Cooling Fan
- Pump - Fuel (External)
- Resistor - Fan Dropping
- Trailer Tow - Vehicle Side
Pigtail Kit Part Number WPT-1619
Service Part Number:
3U2Z-14S411-EUAC
Gauge:
14
Pin material:
Silver & Silver(Greased)
Cavities:
2
Vehicle Uses:
- Actuator - Park Brake
- Battery Charger - Cooling Fan
- Connector - Inline
- Module - All Wheel Drive
- Motor - Engine Cooling Fan
- Pump - Fuel (External)
- Resistor - Fan Dropping
- Sensor - Brake Fluid Level
- Sensor - Washer Fluid level
- Trailer Tow - Vehicle Side
