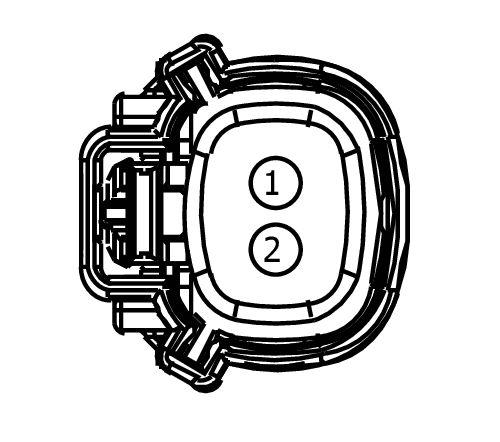

Connector End View (C1673) - FUEL INJECTION PUMP

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1673	FUEL INJECTION PUMP	BK	12C508	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
7U5T-14474-TA	DU2Z-14474-DA	1.50
7U5T-14421-TA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CE226 (YE-VT)	16	CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) +	7U5T-14421-TA
2	RE226 (GN-VT)	16	CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) -	7U5T-14474-TA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1631

Service Part Number:

EU2Z-14S411-MB

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Lamp - Fog/Driving
Motor - Electric Water Pump
Motor - Long Travel
Pump - Fuel Injection
Solenoid - Fuel Volume Regulator Control
Valve - Fuel Metering
Valve - Vacuum On Demand Auto Shutoff
