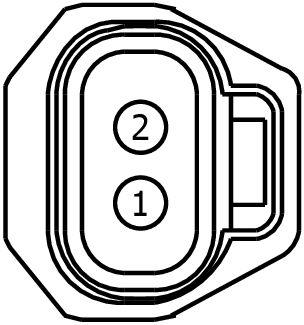

Connector End View (C1622) - TURBOCHARGER BYPASS (TCBY) VALVE
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C1622 |
TURBOCHARGER BYPASS (TCBY) VALVE |
BK |
14B242 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
| EU5T-14474-NB |
Not Available |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
CBK03 (GY) |
16 |
FUSE - 8 OR CIRCUIT BREAKER |
EU5T-14474-NB |
| 2 |
VE175 (BN-WH) |
20 |
CTRL MOD. - POWERTRAIN # ELECTRONIC COMPRESSOR BYPASS VALVE (ECBV_PWM) |
EU5T-14474-NB |
