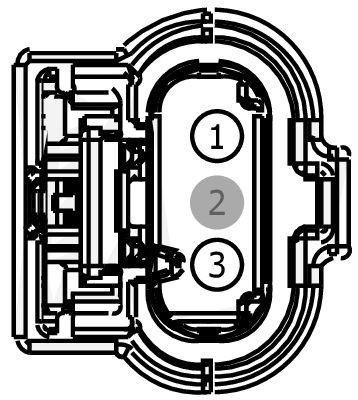

Connector End View (C1608) - IGNITION COIL-ON-PLUG 8
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C1608 | IGNITION COIL-ON-PLUG 8 | BK | 12C508 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| EU5T-14474-GAB | KU2Z-14474-CA | 1.20 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CBK04 (VT) | 18 | FUSE - 9 OR CIRCUIT BREAKER | EU5T-14474-GAB | ||||
| 2 | * | * | Not Used | N/A | ||||
| 3 | CE310 (BU-BN) | 18 | CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 8 (COP-H) | EU5T-14474-GAB | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1602
Service Part Number:
KU2Z-14S411-BA
Gauge:
18
Pin material:
Silver
Cavities:
3
Vehicle Uses:
- Sensor - Delta Pressure Feedback EGR
- Sensor - Fuel Rail Pressure
Pigtail Kit Part Number WPT-1558
Service Part Number:
JU2Z-14S411-ASA
Gauge:
18
Pin material:
Silver
Cavities:
3
Vehicle Uses:
- Coil - Ignition
